Home > Products > Potentiometer > 9mm rotary potentiometer for volume control
9mm rotary potentiometer for volume control
- 100000 Piece / Pieces per Month
- Shenzhen or Guangzhou
- T/T
You May Like
Product Details
| Place of Origin | China | Brand Name | USE | |
| Model Number | R09 | Type | Rotary Potentiometer | |
| Technology | Other, Alluminum | Resistance | 50KΩ | |
| Resistance Tolerance | ± 20% | Rated Power | Linear Taper B 0.1W, Other Taper:0.05W | |
| Max. Operating Voltage | Linear Taper B: AC 150V,Other Taper: DC 100 V | Operating Temperature | -10°C~+70°C |
Product Description

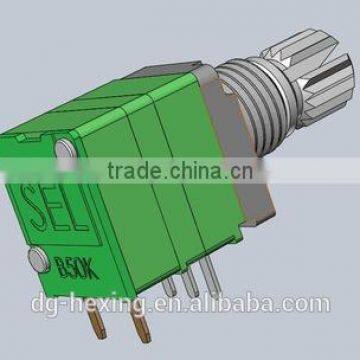

9mm rotary potentiometer for volume control
Material: Zinc aolly, plastic
Size: 9mm
Shaft size: customized
Total Resistance: 50KΩ ± 20%
Rated Power : Linear Taper B 0.1W, Other Taper:0.05W
Max.Operating Voltage : Linear Taper B: AC 150V,Other Taper: DC 100 V
Insulation Resistance : More than 100 MΩ at DC 500 V
Rotational Noise: Less than 100 mV
Switch Rated Power : 1 A at DC 12V
Contact Resistance of Power: Less than 100 mΩ
Total Rotational Angle: 300°±10°
Rotational Torque: 20~200gf.cm
Switch Action: 50~250gf.cm
Switch Rotational Angle: Rotary SW:50°max.
Rotational life: 10,000 Cycles min
Switch life: 10,000 Cycles min
Operating Temperature Range : -10°C~+70°C
polyfoam box+carton
200pcs per polyfoam, 2000pcs per carton
FOB Shenzhen
1> 5 pieces free samples is available.
2>Short lead time.
3>Best quality and service.
