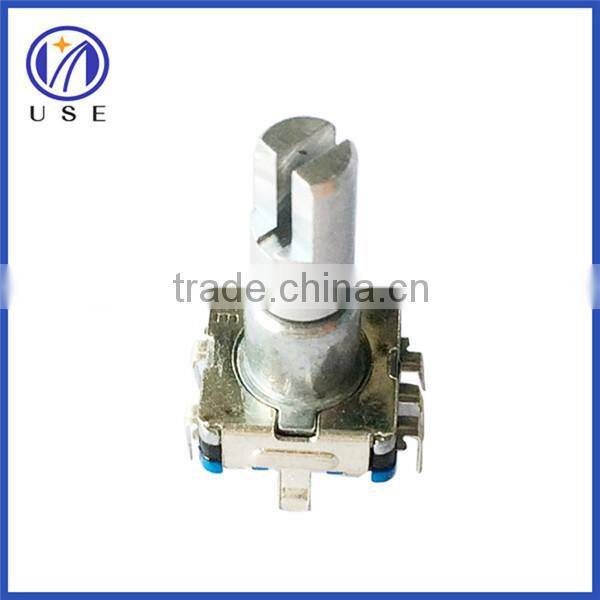

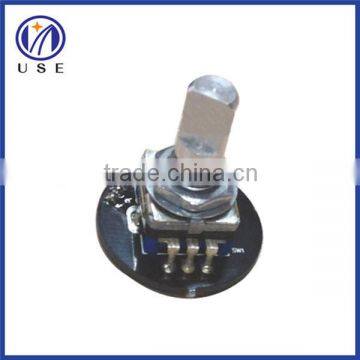

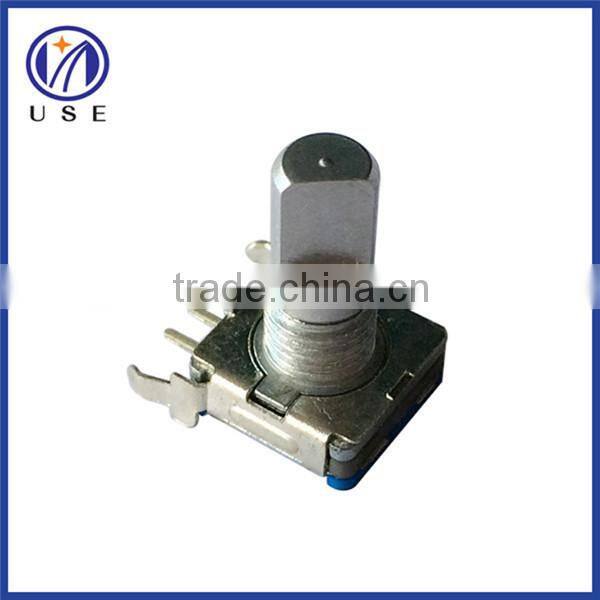

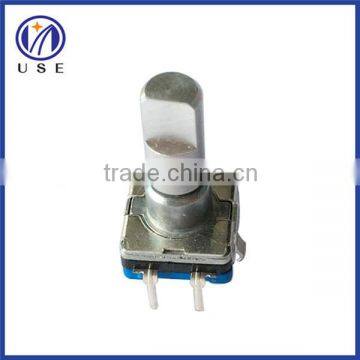

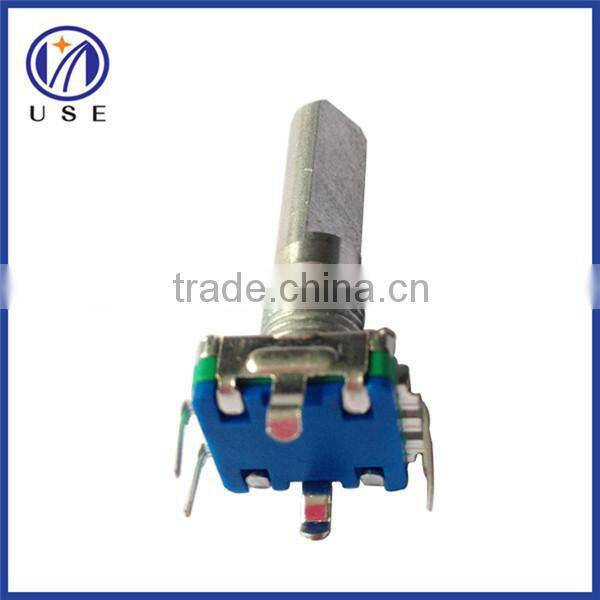

New 11mm Size Incremental Rotary Encoder for Home Audio Switch

New 11mm size incremental rotary encoder for home audio switch

Rated voltage: DC 5V

Operating temperature range: -10℃ to 70℃

Number of pulses in 360° rotation: 15Pulses of 360° or 20Pulses of 360°

Insulation resistance:  100MΩ Min

Rotational life: 30000 cycles

Detent torque:   3~20mN.m(30~200gf.cm)

Push life: The shaft of encoder shall be push to 20000 cycles at a speed of 600 cycles/H without electrical load

1.General

1.1 Scope

This specification applies to 12mm size low-profile rotary encoder(incremental type),for microscopic current circuits,used in electronic equipment

1.2 Standard atmospheric conditions

Unless otherwise specified,the standard range of atmospheric conditions for making measurements and test is as following limits:

Ambient temperature:15 to 35

Relative humidity:25% to 85%

Air pressure: 86kpa  to 106kpa

1.3  Operating temperature range:-10 to  70

1.4  Storage temperature range: -40 to +85

2.Construction

3. Rating

Rated voltage: DC 5V

Maximum operating current (resistive load)

Each lead: 0.5mA(MAX  5mA; MIN 0.5mA)

Common lead: lmA(MAX  10mA; MIN 0.5mA)

4.Application  Nots

Avoid storing the products in a place at high temperature,high humidity and in Corrosive gases.Please use this product as soon as possible with 6 months limitation.If any rimainder left after packing is opened,please store it with proper moistureprooting,gasproofing etc.

The encoder pulses count method should be designed with taking operating speed,sampling time and design of the microcomputer softwae into cosideration.

Care must be taken not to expose this product to water or dew to prevent possible problem in pluses output waveform.
