suspended working platform ZLP630/800/1000
- TIANJIN Rope Suspended Platform
- T/T Credit Card PayPal
You May Like
-
safety lock ,hoist ,counterweigth control box of suspended working platform/suspended scaffolds
-
safety lock for electric suspended platform/cradle/gondola
-
Aluminum Alloy Electric Mobile Suspended Scaffolding with ISO CE GOST standard
-
ISO CE approved Construction cleaning cradle/construction cleaning platform
-
100 m Height Suspended Scaffold/Suspended Access Equipment
-
swing stage/suspended scaffolding/rigging/skyclimber
Product Details
| Place of Origin | Beijing, China | Brand Name | Jiuhong | |
| Model Number | ZLP500/630/800/1000 |
Product Description

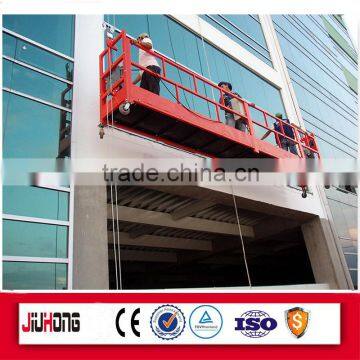

suspended working platform ZLP630/800/1000
SHANDONG JIUHONG HEAVY INDUSTRIES CO.,LTD
A, General Introduction for Suspended Cradle Platform:
ZLP series Suspended Platform Gondola is a substitute of traditional scaffold , it
belongs to electrical-driven climbing and decorating machinery.
B, Structure for Suspended Cradle Platform:
It assembled by mudular plates, hoist and frame, safety lock, electrical control
box, wire rope, cable, safety rope and lock assembly, suspension mechanism, counter
weight, heavy hammer and caster wheel etc. Wall roller is optional.
C,Application for Suspended Cradle Platform:
It mainly used to maintain and clean the external walls of high-rise buildings and
exterior construction such as cement coating, veneer, paints, installing the glass
curtain walls, painting as well as cleaning and maintainence. Also can be applied to
the operating of big vessels and bridges dams etc.
D, Safety devices for Suspended Cradle Platform:
Safety lock, top limit switch, emergency manual descent,speed reducer
E,Electric Suspended Cradle Platform VS Scaffolding:
Applying the suspended platform can release scaffold free, reduce the construction
cost and the efficiency will be greatly increase. Mean while, the platform is
simple, safe, easy transfer & operate.
F, Simple tech. info. for Jiuhong Regular Suspended Cradle Platform
| Model | ZLP1000 | ZLP800 | ZLP630 | ZLP500 | ZLP250 |
| Rated Load (kg) | 1000 | 800 | 630 | 500 | 250 |
| Lifting Speed (m/ min) | 8.3+0.5 | 8.3+0.5 | 8.3+0.5 | 8.3+0.5 | 8.3+0.5 |
| Platform Length (m) | 7.5 | 7.5 | 6 | 5 | 2.5 |
| Standard lifting height (m) | 100 | 100 | 100 | 100 | 100 |
G,Detail parameter for Jiuhong Regular Suspended Cradle Platform
Name | Technical parameter | |||
Model | ZLP800 | ZLP630 | ||
Platform Rated load | 800Kg | 630Kg | ||
Lifting speed | 8-10m/min | 8-10m/min | ||
Platform Dimension L×W×H(mm)Spray plastics corrosion-resistant | 7500(2.5m*3)×720×1300 | 6000(1+2+3m)×720×1300 | ||
Lifting Height | 100 m | 100 m | ||
Cable | 100 m | 100 m | ||
Steel rope (specially-made) | 9.1mm | 8.3mm | ||
Platform Hoist | Pulling power | 7.84KN | 6.17KN | |
electric motor | model | YEJ100L-4 | YEJ90L-4 | |
Power | 1.8KW*2 | 1.5KW*2 | ||
Voltage | 380V | 380V | ||
Rotational speed | 1420rpm | 1420rpm | ||
Braking moment | 15Nm | 15Nm | ||
Safety lock | Permission force of impact | 30KN | 30KN | |
Locking Cable Angle | 3°~8° | 3°~8° | ||
Suspension mechanism(Galvanized ) | Front beam overhang | 1.3~1.5m | 1.3~1.5m | |
Support adjustable height | 1.44~2.14m | 1.44~2.14m | ||
Counterweight | 1000kg | 800kg | ||
20’ft container can load Platform qty | 8sets | 9sets | ||
40’ft container can load Platform qty | 13sets | 14sets | ||
H. Different Cradle platform shape for special building:
Fan shape suspended platform;
Round shape suspended platform;
90 degree angle shape suspended platform;
Aluminum Alloy material suspended platform;
Project photo for suspended platform.
Suspended Platform Parts Components
LTD Hoist,Electric Winch,Cable Climer ,Electric Motor,Electric Hoist LTD630
Safety Lock,Safety Brake, for Suspended Platform
CLIENT VISIT FACTORY AND WORKSHOP
Production workshop
Electric Control Box
