construction material suspended scaffoldings
- Tianjin Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Building cleaning /renovation/maintainence Hanging Scaffold Systems
-
Steel/Aluminum Suspended Platform/Cradle/Gondola/Zlp630
-
ZLP 800 building/window cleaning electric suspended working platform
-
ZLP Suspended Platform Window Cleaning Equipment
-
2016 new portable electric stage
-
2016 new release motor lift platform
Product Details
| Place of Origin | Beijing, China | Brand Name | Jiuhong | |
| Model Number | ZLP630 |
Product Description
* Posible to assemble in size in the range of 1 to 7.5 meters
*Platform height can be adjustable (0-100m)
* we can supply customized platform to meet different requirements from the customers.

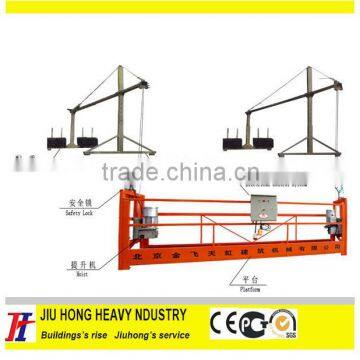

Component Parts
1.Platform
2.2pcs Hoist
3. 2pcs safety lock
4. Electric control box
5. Suspension mechanism(rigging system)
6.steel rope, electric cable,counter weight
It belongs to electrical-driven climbing and decorating machinery. Please find the following structure:
Technical Parameters:
Name | Technical parameter | |||||
Model | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | ||
Rated load | 500Kg | 630Kg | 800Kg | 1000Kg | ||
Lifting speed | 8-10m/min | 8-10m/min | 8-10m/min | 8-10m/min | ||
Platform Dimension L×W×H(mm) | 5000(2+3m)×720 | 6000(1+2+3m)×720 | 7500(2.5m*3)×720 | 7500(3*2.5)×720 | ||
Lifting Height | 100 m | 100 m | 100 m | 100 m | ||
Cable | 100 m | 100 m | 100 m | 100 m | ||
Steel rope | dia8.3mm | dia8.3mm | dia9.1mm | dia8.6mm | ||
Hoist | Power | 1.5KW*2 | 1.5KW*2 | 1.8KW*2 | 2.2 KW*2 | |
Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | ||
Safety lock | Permission force of impact | 30KN | 30KN | 30KN | 30KN | |
Locking Cable Angle | 3°~8° | 3°~8° | 3°~8° | 3°~8° | ||
Suspension mechanism | Front beam overhang | 1.3~.1.5m | 1.3~1.5m | 1.3~1.5m | 1.3~.1.5m | |
Support adjustable height | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | ||
Counterweight | 800KG | 1000kg | 1000kg | 1200KG | ||
- We have also special working platforms available:
1. Adjustable circle size.
2. Double rack aluminum alloy.
4. New generation aluminum alloy suspending platforms.
5. 90º assembly suspending platforms.
6. U suspending platforms.
Picture:
Project cases:
Last month 116sets export to Dubai, Also sell to brazil, Panama, Clombia, Bolivia,Singapore, Algeria ect more than 30 countries.
Our products quality are approved by ISO, CE,GOST certificates
1.One-year guarantee service
2.Supply free-quick-wear parts
3.Hot line for 24-hour after-sale service available.
4.The technical documents and installation specification will be attached with equipment.
Jiuhong Heavy Industry Group Co.,ltd(Shandong Factory)
Jiuhong Heavy Industry Group Co.,Ltd is one of leading manufacturer of construction equipment in North China. Mainly products are suspended platform, Construction hoist, material hoist, Tower crane with 15years experience.
Jiuhong has obtained the “own brand,Intellectual Property,ISO,CE,GOST,EAC certificates and many other national patents.Jiuhong is the only one manufacturer has the ability to “produce and inspect” the safety anti-falling device for construction elevator,material hoist.
We always put quality and security in the first .JH Brand is well-known in China as well as international market.We sell to Europe, south America, South Asia, Africa, Russia etc more than 50 countries.
Welcome to our factory for a visit and desire to establish long-term mutual benefit relationship with you.
Company Profile:
Our Technician team:
1.Are you factory or trade company?
We are direct factory with 170,000 square meters factory space,supply qualified products with factory price.
2. What quality guarantee for your products?
Re: Our products gets ISO,CE,GOST,EAC certificates
3. Price
Re: please send us inquiry, A consideration solution or preferable quotation will be sent within 24 hours.
4. Installation & Maintaining
Re: We will send installation & maintaining manual and VCD along with the suspended platform in the container. It's very easy to erect without need special tools.
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.Technician will be sent to construction site if necessary.
5. Brand names
Re: Our brand is “JH”, also OEM service is available, but you should send us the trademark authorization letter.
6. Payment term
Re: T/T or L/C at sight.
7. Shipping & price term
Re: EXW/ FOB/CFR/CIF price term are all available, we have reliable forwarder can help arrange the shipment for you.
8.Spare parts & guarantee
Re: Every suspended platform has a package of spare parts sent along with the container. If any parts get damaged because of quality within 12 months after shipping date. We will send new parts to replace right away.
