ZLP Electric suspended platform,hanging platform from manufacturer
- QINGDAO or TIANJIN China
- T/T Credit Card
You May Like
-
suspended working platform,cradle,gondola 500-1000kg
-
building window cleaning cradle/gondola/suspended platform
-
window cleaning suspended platform,cradle,gondola
-
china Manufacturers zlp800 zlp630 suspended platform
-
Electric construction cleaning platform
-
Exerior wall construction equipment electric building maintenance cleaning gondola
Product Details
| Place of Origin | Shandong, China | Brand Name | JIUHONG | |
| Model Number | ZLP1000 | Lift Mechanism | Other, steel wire rope | |
| Lift Drive / Actuation | Other, Hoist | Power | 2.2kw*2 | |
| Rated Loading Capacity | 1000kg | Min. Lifting Height | 10m | |
| Max. Lifting Height | 100m | Table Size | 7.5(2.5*3)*0.72*1.3m | |
| Overall Dimensions | 1850mm*1000mm*950mm | Weight | 1200kg | |
| Certification | CE ISO | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
ZLP Electric suspended platform,hanging platform from manufacturer
Introduction of Company
Jiuhong Heavy Industy Group(Beijing and Shandong) manily engaged in:”QTZ series of
tower crane, SC series of construction hoist, SS series material hoist,ZLP series suspended platform,
concrete placing boom”as well as other construction machinery products,integrated R&D,production,
sales & after-sale service.
Jiuhong Group now has three major manufacturers:
I.Shandong Jiuhong
Location: Gaotang,Shandong Province
Area: 95,000 square meters
Main Products: tower crane,construction elevator,material hoist,suspended platform
Annual production capacity: 5,000sets
Office Building
II.Beijing Jiuhong
Location: Changping District,Beijing
Area:35,000 square meters
Main Products: tower crane,construction elevator,material hoist,suspended platform
Annual production capacity:5,000sets
III.Shandong Jiuyi Elevator(new projects and main investment in 2015)
Location: Gaotang,Shandong Province
Area:55,000 square meters
Main buiding:33-storey,110m high elevator testing tower, dust-free workshop, multifunctinal exhibition hall etc.
Main products: passenger lifts, escalator,cargo lifts,tourism lift
Annual production capacity:2,000sets
Client Visit Our Factory
Product Description
Main Usage:
Widely applied to various works of building walls such as Cleaning Painting and decoratiing
Repair and maintenance work platform of building walls, glasses,external walls, large chimney, large tanks,
dams etc.Also can be applied to Welding, cleaning and painting for large ships,and Installing billboard for the high- rise buildings.
b.Main Feature
1. Safety rope and safety lock
2. Famous brand of specially-made steel rope
3. Refined technological structure, safe and reliable mechanical properties
4. It is easy for operation,flexible for moving,reliable in safety.It can take the place of construction scaffolding,improve the efficiency and save cost.
2. Structure for Suspended Platform:
It assembled by modular platforms, hoist, safety lock, electrical control
box, wire rope, cable, safety rope and lock assembly, suspension mechanism, counter
weight, heavy hammer, caster wheel, wall roller etc.
3. Application for Suspended Platform:
It mainly used to maintain and clean the external walls of high-rise buildings and
exterior construction such as cement coating, veneer, paints, installing the glass
curtain walls, painting as well as cleaning and maintainence. Also can be applied to
the operating of big vessels and bridges dams etc.
4. Safety devices for Suspended Platform:
Safety lock, top limit switch, emergency manual descent,speed reducer and safety rope.
5. Electric Suspended Platform VS Scaffolding:
Applying the suspended platform can reduce the construction cost and the efficiency will be greatly increase. Meanwhile, the suspended platform is simple, safe, easy transfer and operation.
Technical Parameter:
Model | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | |
Rated load | 500Kg | 630Kg | 800Kg | 1000Kg | |
Lifting speed | 8-10m/min | 8-10m/min | 8-10m/min | 8-10m/min | |
Platform Dimension L×W×H(mm) | 5000(2+3m)*20*1300 | 6000(1+2+3m)*720*1300 | 7500(2.5m*3)*720*1300 | 7500(2.5m*3)*720*1300 | |
Lifting Height | 100 m | 100 m | 100 m | 100 m | |
Cable | 100 m | 100 m | 100 m | 100 m | |
Steel rope (specially-made) | 8.3mm | 8.3mm | 9.1mm | 8.6mm | |
Hoist | Power | 1.5KW*2 | 1.5KW*2 | 1.8KW*2 | 2.2KW*2 |
Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | |
Safety lock | Permissionforce of impact | 30KN | 30KN | 30KN | 30KN |
Locking Cable Angle | 3°~8° | 3°~8° | 3°~8° | 3°~8° | |
Suspension mechanism | Front beam overhang | 1.3~.1.5m | 1.3~.1.5m | 1.3~.1.5m | 1.3~.1.5m |
Support adjustable height | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | |
Counterweight | 800KG | 800kg | 1000kg | 1000kg | |
20’ft container | 10 sets | 9 sets | 8 sets | 7 sets | |
Note:
Special made Voltage for 110V, 220V, 240V, 400V, 415V, 440V etc. (3-phase only)
Counter weight: 25kg per piece, Concrete material, Iron Material etc.

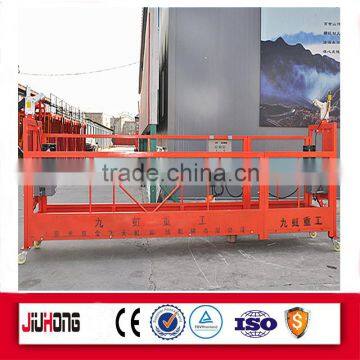

The picture of product
Suspended platform at working site
Suspended Platform Parts
The different shape of Suspended platform
Suspended platform of steel
Main Parts of suspended Platform
Packaging&Shipping
1.7-10 days after received payment
2. Plastic film,wooden case,Carton or according to your requirement
Our service
We have one year guarantee
Good after sale service
Engineer available to service machinery overseas
