Home > Products > SUSPENDED PLATFORM > ZLP800 800kg 7.5m Suspended Platform,Rope suspended platform

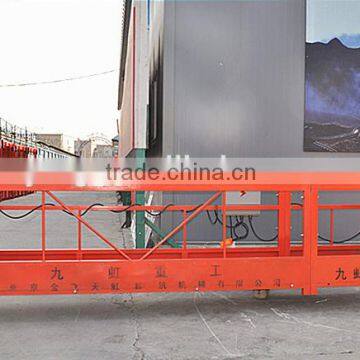

ZLP800 800kg 7.5m Suspended Platform,Rope suspended platform

FOB Price

US$ 1,500 - 2,500 / Set

1 Set(Min. Order)

Port QINGDAO TIANJIN China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	JIUHONG
Model Number	ZLP800	Lift Mechanism	Other, steel wire rope
Lift Drive / Actuation	Other, Hoist	Power	1.8kw*2
Rated Loading Capacity	800kg	Min. Lifting Height	10m
Max. Lifting Height	100m	Table Size	7.5(2.53)0.72*1.3m
Overall Dimensions	1850mm1000mm950mm	Weight	850kg
Certification	CE ISO	Warranty	One Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

ZLP800 800kg 7.5m Suspended Platform,Rope suspended platform

Company Information

Jiuhong Heavy Industy Group(Beijing and Shandong) manily engaged in:”QTZ series of

tower crane, SC series of construction hoist, SS series material hoist,ZLP series suspended platform,

concrete placing boom”as well as other construction machinery products,integrated R&D,production,

sales & after-sale service.

Jiuhong Group now has three major manufacturers:

I.Shandong Jiuhong

Location: Gaotang,Shandong Province

Area: 95,000 square meters

Main Products: tower crane,construction elevator,material hoist,suspended platform

Annual production capacity: 5,000sets

II.Beijing Jiuhong

Location: Changping District,Beijing

Area:35,000 square meters

Main Products: tower crane,construction elevator,material hoist,suspended platform

Annual production capacity:5,000sets

III.Shandong Jiuyi Elevator(new projects and main investment in 2015)

Location: Gaotang,Shandong Province

Area:55,000 square meters

Main buiding:33-storey,110m high elevator testing tower, dust-free workshop,

multifunctinal exhibition hall etc.

Main products: passenger lifts, escalator,cargo lifts,tourism lift

Annual production capacity:2,000sets

Main Usage:

a. Cleaning work platform of building walls, glasses, external walls, large chimney, large tanks, dams etc.

b. Painting and decoration work platform of building walls, glasses, external walls, large chimney, large tanks, dams etc.

c. Repair and maintenance work platform of building walls, glasses, external walls, large chimney, large tanks, dams etc.

d. Widely applied to various works of building walls, glasses, external walls, large chimney, large tanks, dams etc.

Technical Parameter:

Model		ZLP500	ZLP630	ZLP800	ZLP1000
Rated load		500Kg	630Kg	800Kg	1000Kg
Lifting speed		8-10m/min	8-10m/min	8-10m/min	8-10m/min
Platform Dimension L×W×H(mm)		5000(2+3m)201300	6000(1+2+3m)7201300	7500(2.5m3)720*1300	7500(2.5m3)720*1300
Lifting Height		100 m	100 m	100 m	100 m
Cable		100 m	100 m	100 m	100 m
Steel rope (specially-made)		8.3mm	8.3mm	9.1mm	8.6mm
Hoist	Power	1.5KW*2	1.5KW*2	1.8KW*2	2.2KW*2
Hoist	Voltage	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Safety lock	Permissionforce of impact	30KN	30KN	30KN	30KN
Safety lock	Locking Cable Angle	3°~8°	3°~8°	3°~8°	3°~8°
Suspension mechanism	Front beam overhang	1.3~.1.5m	1.3~.1.5m	1.3~.1.5m	1.3~.1.5m
Suspension mechanism	Support adjustable height	1.44~2.14m	1.44~2.14m	1.44~2.14m	1.44~2.14m
Counterweight		800KG	800kg	1000kg	1000kg
20’ft container		10 sets	9 sets	8 sets	7 sets

Note:

Special made Voltage for 110V, 220V, 240V, 400V, 415V, 440V etc. (3-phase only)

Counter weight: 25kg per piece, Concrete material, Iron Material etc.

The picture of product

Suspended platform at working site

The suspended platform of aluminum

The electric cabinet

The different shape of Suspended platform

Main Parts of suspended Platform

Packaging&Shipping

1.7-10 days after received payment

2. Plastic film,wooden case,Carton or according to your requirement

Our service

We have one year guarantee

Good after sale service

Engineer available to service machinery overseas

If you have needs please contact me
