Suspended cradle / construction gondola
- Tianjin Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
ZLP630 hoist electric scaffolding suspended
-
Top quality aluminum or steel electric scaffolding
-
ZLP630 window cleaning cradle
-
Cost effective economic Construction gondola/Electric scaffolding
-
2016 hot sale aerial work suspended platform(with ISO,CE,GOST Certificates)
-
7.5M ZLP800 Steel Aerial Lifting Suspended Platform/Electric Cradle/Construction Gondola
Product Details
| Place of Origin | Beijing, China | Brand Name | Jiuhong | |
| Model Number | ZLP630 |
Product Description
Specification:
1,100m height, the working height can be adjusted
2,1.2m-7.5m platform length,the length of platform can be adjusted
3,steel/ aluminum material,The platform material can be chosen
4.Quality approved by CE,GOST Certificates
5.Made in famous brand(JH) ISO Certificated manufacturer
6,1year Guarantee
7.We can supply customized OEM or ODM Platform
Feature:
simple flexible, easy teansfer, easy to operate,easy to erection & dismantle, safe and and reliable.
Advantage:
It can release scaffold free, reduce the costruction cost and increase efficiency.
Application:
It decorates, maintains and cleans the external walls of high-level multi-storey buildings and exterior construction such as cement coating,
veneer, paints, installing the glass curtain walls, painting as well as cleaning and maintainence. Also can be applied to the operating of big vessels and bridges, dams etc.
It belongs to electrical-driven climbing and decorating machinery. Please find the following structure:
Technical Parameters:
Name | Technical parameter | |||||
Model | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | ||
Rated load | 500Kg | 630Kg | 800Kg | 1000Kg | ||
Lifting speed | 8-10m/min | 8-10m/min | 8-10m/min | 8-10m/min | ||
Platform Dimension L×W×H(mm) | 5000(2+3m)×720 | 6000(1+2+3m)×720 | 7500(2.5m*3)×720 | 7500(3*2.5)×720 | ||
Lifting Height | 100 m | 100 m | 100 m | 100 m | ||
Cable | 100 m | 100 m | 100 m | 100 m | ||
Steel rope | dia8.3mm | dia8.3mm | dia9.1mm | dia8.6mm | ||
Hoist | Power | 1.5KW*2 | 1.5KW*2 | 1.8KW*2 | 2.2 KW*2 | |
Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | ||
Safety lock | Permission force of impact | 30KN | 30KN | 30KN | 30KN | |
Locking Cable Angle | 3°~8° | 3°~8° | 3°~8° | 3°~8° | ||
Suspension mechanism | Front beam overhang | 1.3~.1.5m | 1.3~1.5m | 1.3~1.5m | 1.3~.1.5m | |
Support adjustable height | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | ||
Counterweight | 800KG | 1000kg | 1000kg | 1200KG | ||
- We have also special working platforms available:
1. Adjustable circle size.
2. Double rack aluminum alloy.
4. New generation aluminum alloy suspending platforms.
5. 90º assembly suspending platforms.
6. U suspending platforms.

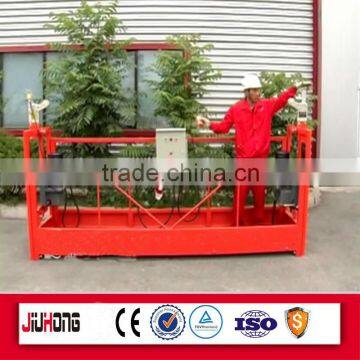

Picture:
Project cases:
Last month 116sets export to Dubai, Also sell to brazil, Panama, Clombia, Bolivia,Singapore, Algeria ect more than 30 countries.
Our products quality are approved by ISO, CE,GOST certificates
1.One-year guarantee service
2.Supply free-quick-wear parts
3.Hot line for 24-hour after-sale service available.
4.The technical documents and installation specification will be attached with equipment.
Jiuhong Heavy Industry Group Co.,ltd(Shandong Factory)
Jiuhong Heavy Industry Group Co.,Ltd is one of leading manufacturer of construction equipment in North China. Mainly products are suspended platform, Construction hoist, material hoist, Tower crane with 15years experience.
Jiuhong has obtained the “own brand,Intellectual Property,ISO,CE,GOST,EAC certificates and many other national patents.Jiuhong is the only one manufacturer has the ability to “produce and inspect” the safety anti-falling device for construction elevator,material hoist.
We always put quality and security in the first .JH Brand is well-known in China as well as international market.We sell to Europe, south America, South Asia, Africa, Russia etc more than 50 countries.
Welcome to our factory for a visit and desire to establish long-term mutual benefit relationship with you.
Company Profile:
Our Technician team:
1.Are you factory or trade company?
We are direct factory with 170,000 square meters factory space,supply qualified products with factory price.
2. What quality guarantee for your products?
Re: Our products gets ISO,CE,GOST,EAC certificates
3. Price
Re: please send us inquiry, A consideration solution or preferable quotation will be sent within 24 hours.
4. Installation & Maintaining
Re: We will send installation & maintaining manual and VCD along with the suspended platform in the container. It's very easy to erect without need special tools.
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.Technician will be sent to construction site if necessary.
5. Brand names
Re: Our brand is “JH”, also OEM service is available, but you should send us the trademark authorization letter.
6. Payment term
Re: T/T or L/C at sight.
7. Shipping & price term
Re: EXW/ FOB/CFR/CIF price term are all available, we have reliable forwarder can help arrange the shipment for you.
8.Spare parts & guarantee
Re: Every suspended platform has a package of spare parts sent along with the container. If any parts get damaged because of quality within 12 months after shipping date. We will send new parts to replace right away.
