High Quality Epoxy Resin Busbar Support Insulator

FOB Price

US$ 3 - 30 / Piece

10 Pieces(Min. Order)

Port Xiamen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	EUNOV
Model Number	Post Insulator	Type	Other, Insulator, Post Insulator
Material	Other, Epoxy Resin, Epoxy Resin	Application	High Voltage
Rated Voltage	33--40.5 kv, 33-40.5kv	Tensile Strength	> 8 KN

Product Description

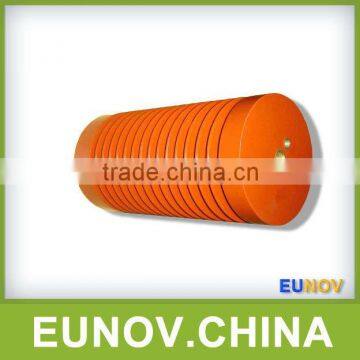

1.Pictures of Post Insulator

2.Origin Design

3.Advantages

Type:	Rated voltage	Creepage distance	Power frequency withstand voltage	Lighting impulse withstand voltage	Partial discharge	Bending strength
ZNQ-40.5-2(ZNQ37)	33—40.5kv	> 650mm	95kv/min	< 10 PC	200kv	> 8 KN

Series	Test item	unit	Requirement	Test rate	Conclusion
1	Appearance	/	The surface must be clean and smoothly ,without crack,impurity,bubbles,burr,concave,shrinkage.	100%	Pass
2	Dimension	mm	According to drawing	100%	Pass
3	P. F.	95KV/3min	HV end to earthing	100%	Pass
4	Partial discharge	PC	28KV ,≤10PC	100%	Pass
Note:

1. Adopts epoxy resin automatic pressure gel craft that be APG craft manufacture, Product beautiful, Machine, Electrical performance fit.

2. Adopts high toughness epoxy resin manufacture, Machine capability excellent. And adopts low reaction activity recipe system, Material solidifies slow, Product body stress low reaction activity recipe system, Material solidifies slow, Product body stress low, Maximum field enhances product's machine capability.

3. Adds activated silica slight powder, Furthurs enhance epoxy resin's machine capability, Much ensures insulate long-term keep good electric insulate performance under wet work environment.

4. Adds organic color, Product color and lustre bright, Does not reduce product's insulate performance.

4.Company Profile

Our Company

Contact Us

EUNOV (Xiamen) Electrical Engineering Co., Ltd.: Contact nameHuang Harley
Chat Now; Phone86-592-8216745, 2612415; Address1 of No.56, HuLi Boulevard, Xiamen, Fujian
