High Quality Epoxy Resin 40.5kv Capacitive Type Isolator
US$ 3 - 30
/ Piece
10 Pieces(Min. Order)
- Xiamen port
- T/T Credit Card
You May Like
-
24kv Epoxy Resin Material Capacitive Type Insulator
-
APG Casting Way Epoxy Resin 12kv Capacitive Insulator
-
Manufacturer Sales High Voltage Epoxy Insulator
-
High Quality Epoxy Resin China Red 40.5kv Capacitive Divider Insulator
-
Supply Epoxy Resin Red 33kv-40.5kv Capacitive Insulator
-
Company Supply 33kv-40.5kv Epoxy Capacitive Insulator
Product Details
| Place of Origin | Fujian, China | Brand Name | EUNOV | |
| Model Number | CG-40.5-1 | Type | Other, Insulator, Insulator | |
| Material | Other, Epoxy Resin, Epoxy Resin | Application | High Voltage | |
| Rated Voltage | 33kv-40.5kv | Tensile Strength | > 10KN |
Product Description

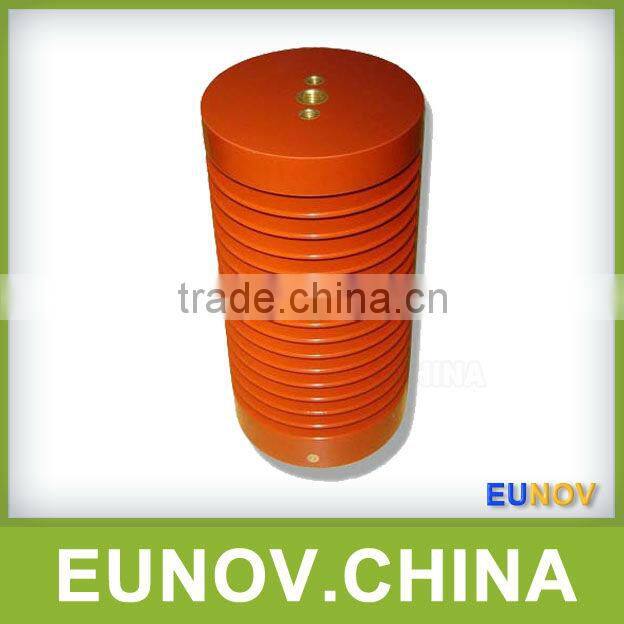

Pictures of Capacitive Insulator

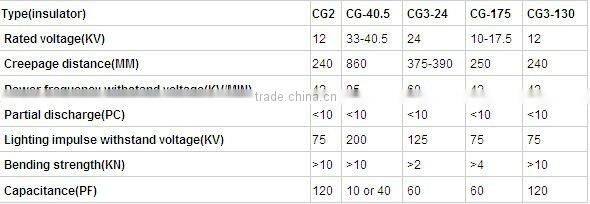

Type: CG-40.5-1 Capacitive Insulator
Rated voltage: 33-40.5kv
Creepage distance: >860mm
Power frequency withstand voltage: 95kv/min
Partial discharge: <10 PC
Lightning impulse withsand voltage: 200kv
Bending strength: >10KN
Capacitance=10PF or 40PF
