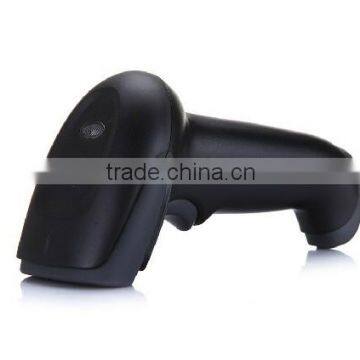

Honeywell YOUJIE YJ4600 1D&2D Area Imaging Barcode Scanner/BarCode Reader Support QR Code/Data Matrix /PDF417 Code#8019

Specifications

If you need barcode samples to test quality,pls order directly in our Aliexpress store:

/store/group/2D-Barcode-Scanner/807841_211853755.html

Introduction:
       The YJ4600 is a general purpose area imaging scanner targeting middle to low segments of the 2D market. With competitive pricing, outstanding performance, ergonomic design, and optimum functionality, it meets the demands of a wide variety of applications. If you are looking for a cost effective but high performance area imaging scanner, the YJ4600 will be your best choice.
       2D barcodes are used in many industrial applications and are becoming increasingly popular. QR Codes on high-speed train tickets, PDF 417 barcodes on airline boarding passes, as well as the growing popularity of mobile coupons, have all greatly contributed to the increasing prevalence of 2D barcodes.
     The YJ4600 2D imaging scanner presents an affordable solution for enterprises who wish to upgrade their equipment. Not only does it accurately and quickly read both 1D and 2D barcodes, it also seamlessly captures barcodes on electronic screens (such as mobile phone) and provides an effective data acquisition tool for  e-coupons and e-tickets. With advanced imaging and decode technology, the YJ4600 has a superior first-pass read rate on poorly printed and low quality codes. The product is an ideal choice for a wide variety of applications, including aviation and railway transportation, banking and securities, e-tickets, and many more.

Features:
1)Cost-effective: competitive pricing, outstanding performanceCompact, lightweight, user-friendly design: fast and accurate scanning, elegant and ergonomic design allows for a natural and comfortable grip
2)Versatile scanning modes: supports both handheld and presentation scanning mode with automatic object detection and scanning
3)Advanced decoding software: cutting-edge decoding technology, able to scan both 1D and 2D barcodes fast and accurately
4)Reliable data capture ability: supports all standard 1D and mainstream 2D symbology, as well as those on electronic screesn (such as mobile phones)
5)Future-proof investment: protects your future investment with 2D capability at an affordable price meeting both current and future barcode scanning needs

Specification:
Mechanical
Dimensions (Lx Wx H): 170mm x 66mm x 85mm
Weight: 120g

Electrical
Input Voltage: 4 ~ 5.5 V DC
Operating Power: 2W; 400 mA @ 5V - typical
Standby Power: 0.45w, 90mA@ 5V - typical
DC Power: Class2; 5.2VDC@1°
EMC: EN55022, EN55024 class B
LED Safety Certification: IEC62471
CB: IEC60950
Comprehensive Certification: GOST-R (Russia), CE

Environmental
Operating Temperature: 0°C - 40°C
Storage Temperature: -40°C - 60°C
Humidity: 5% - 95% relative humidity, non-condensing
Light Levels: 0 - 100,000LUX
Drop: designed to withstand falls from a height of up to 1.0m
Environmental Sealing: Sealed to resist airborne particulate contaminants
IP Level: IP40
Motion Tolerance: 100mm per second, 13 mil UPC

Performance
Light Source: white LED
Sight: Red LED, 617nm
Visual Indicators: Green = decoding successful; Red = decoding failed
System Interface: KBW, USB
Scan Pattern: Image
Scan Angle: Pitch ± 70 °, Tilt ± 60 °, Rotation ± 180 °
Print Contrast: Minimum 35% contrast
Decoding: supports most standard 1D and mainstream 2D symbology, as well as those on electronic screens (such as mobile phones)

Note:There are two colors:black and white.(if there is no requirments,we will send it random)
