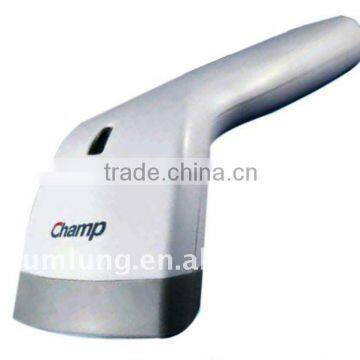

Champ Handheld CCD Barcode Reader SD500 USB RS232 PS2 Port#8019

FOB Price

Negotiable / Unit

10 Units(Min.Order)

Supply Ability 10 Unit / Units per Month
Port HONGKONG Shenzhen Hangzhou Shanghai
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Type	Barcode Scanner
Scan Element Type	CCD	Interface Type	USB, PS/2, Other, USB, PS/2, RS232
Scan Speed	200 scans/sec	Brand Name	Champ
Model Number	SD500	Place of Origin	Taiwan, China

Product Description

Specifications

Champ Handheld CCD Barcode Reader SD500 USB RS232 PS2 Feature:
Low cost, reliable
Light, ergonomic design

1. Physical

Weight: 3 oz (85 g) (w/o cable)
Dimension: 160 x 70 x 22 mm
Cable: Straight 5 ft. (1.5 metres)
Material: ABS

2. Performance

Interface: USB (PS/2, RS232 optional)
Light Source: Visible Red light 635nm LED
Sensor: Linear CCD Sensor
Scan Rate: 200 scans/sec ±10%
Depth of field: 100mm @ 20mil/0.5mm, PCS90% (Contact type)
Width of Field: 50mm
Print Contrast Ratio: PCS45% @ 4mil/0.1mm
Resolution: 4mil/0.1mm @ PCS90%
Indicator: Beeper
Reading Angle: (Code 39, 10mil/0.25mm, PCS 90%)
Forward & Backward: 10°~ 30°(±5°)
Left & Right: ±60°(±5°)
Symbologies:
UPC/EAN/JAN & Addon 2/5, Code 39, Code 39 Full ASCII, Code 11, Matrix 25, Code 128, Code 93, Interleave 25, Industrial 25, Codabar/MW7, MSI/PLESSEY, China Postage, Code2 of 6, LCD25, Telepen, GS1 DataBar (RSS code)

Electrical
Supply Voltage: DC +5V±5%
Operation Current: 120 mA
Stand-by Current: 20 mA

Regulatory
EMC: FCC Part 15 Class B, EN55022, EN55024

Environmental

Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature: -20°C ~ 70°C (-4°F ~ 158°F)
Relative Humidity: 20% ~ 95% (Non-condensing)
Ambient Light:
Direct sun light: 5000 Lux Max.
Drop Durability: Designed to withstand 1 Meter drops

Packing

Dimension
Unit: 23 cm X 12 cm X 7 cm
Carton: 43 cm X 35 cm X 24 cm
Weight
Unit: 290 g
Carton: 6.8 Kg (Q'ty: 20 pcs)
Storage
Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
Humidity: 20% ~ 95% (Non-condensing)
