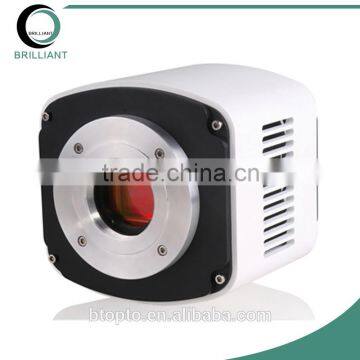

Scientific CMOS Camera Dhyana

FOB Price

US$ 18,500 - 23,000 / Piece

1 Piece(Min. Order)

Port Shanghai
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	Brilliant
Model Number	G400 BSI	Type	Other, Digital Camera, Back-illuminated CMOS Sensor
Style	Box Camera	Sensor	CMOS
Technology	Other	Special Features	Other

Product Description

SPECIFICATIONS

Type :	sCMOS sensor
Size:	2"
Model:	G400 BSI
Color/Monochrome:	Monochrome
Active Pixels:	4 MP
Image Resolution:	2048x2048
Pixel Size:	11μmx11μm
QE:	90%@420nm
Readout Noise:	1.3e-
Sensitivity Threshold :	3p~
Full Well Capacity:	100000e-
DSNU:	0.60%
PRNU:	0.02%
Linearity:	0.998
Dynamic Range:	93dB
Shutter Type:	Rolling Shutter
Exposure Mode:	Manual
Exposure time:	0.02ms-10min
Image Processor:	Built-in image processor
Image Transfer Control:	High Speed FPGA + High Speed DDR
Parameter Settings:	Gamma, Contrast ,External trigger
Scan Mode:	Progressive
A/D :	16bit
Cooling:	Peltier Class II(-25℃)
Frame Rate:	25fps 2048x2048)
Data Transfer:	USB3.0
Data Cable:	1.8 meters USB3.0 cable
Windows Software:	ISCapture/Image J/Matlab
Compatible System:	Window/Linux/Mac
Optical Interface:	M42-T mount
Data Interface:	USB3.0, 5Gb/s
Power Interface:	12V/8A power supply
Operating Temperature:	0-60℃
Operating Humidity:	45%-85%
Storage Temperature:	-20-70℃

1)Brilliant Technology is dedicated to being the leading provider of optical components and integrated optical inspection devices with high standard quality control. This goal will be achieved through our focus on the raw material selection, manufacturing process inspection, sampling,finalization and transportation monitoring.

2) During the manufacturing and sampling procedures, precious optical devices shall be used on the optical parameter detection such as surface irregularity, surface scratch,refractive index, coating and etc.

3) Not only optical components were strictly selected, but also the integrated devices. Every module will be under a series of spec run before releasing itself. Evaluation report comes along with the in-house test for the insurance of each devices’ regular working.
