Medical Thermoformed Package

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 15 Set / Sets per Month
Port Ningbo
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Product Type	Other, Cup Lid, Cup Cover, Plate, Tray, Dish, Bowl, Box
Place of Origin	Zhejiang, China	Brand Name	APT
Voltage	380V/50HZ, 3P	Weight	1200kg
Certification	CE	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

medical thermoformed package
Forming Area: 400X160mm
Forming Depth: 30mm or 50mm

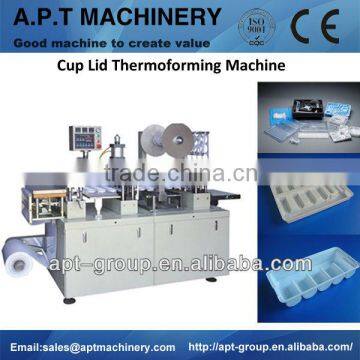

DP-420F Medical Thermoformed Package Thermoforming Machine

Usage:

This machine is specially designed for making disposable HIPS/PVC/PET lids for plastic/paper cups, mini soup spoons, trays, plates, dishes, etc. with different molds.

Machine Working Process:

Main Technical Parameter:

Model	DP-420S
Suitable Material	HIPS/PVC/PET	HIPS/PVC/PET
Max Forming Area	410×150mm	410×150mm
Max Forming Depth	30mm	50mm
The Power of Heater	1.5KW*2pcs	1.5KW*2pcs
Total Power	4.6KW	4.6KW
Required Sheet Width	430mm	430mm
Required Sheet Thickness	0.15-0.55mm	0.15-0.5mm
Air Pressure	0.4-0.7Mpa	0.4-0.7Mpa
Air Consumption	0.6-0.8m³/min	0.6-0.8m³/min
Water Consumption (recycle)	0.2m3/h	0.2m3/h
Punching Frequency	8-32 times/min	8-32 times/min
Power Voltage	380V/50HZ	380V/50HZ
Weight	800kg	800Kg
Packing Dimension	2150×950×1750mm	2150×950×1750mm

Machine Details:

Samples (Our machine could make the following products):

Molds:

More details of the machine, pls contac with us!
