2015 best! digital universal ku band twin lnb
- 500000 Piece / Pieces per Month
- shenzhen/zhuhai
- T/T Credit Card
You May Like
Product Details
| Brand Name | Gecen/OEM | Model Number | GKF-2312 | |
| Place of Origin | Guangdong, China |
Product Description

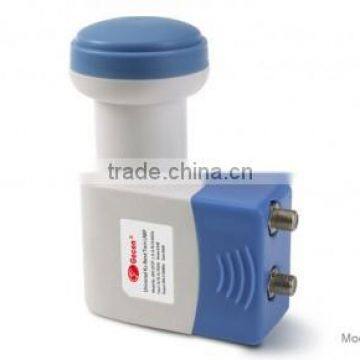

product name: Universal TWIN KU-band LNB
Model number: GKF-2312
Full coverage of Ku-Band for Analog and Digital reception
Low noise figure
Easy installation
Low power consumption
Excellent Cross Polarization Isolation
Ultimate Reliability
High quality weather protection
Item Specification Item Specification Input Frequency Range Low Band:10.70~11.70GHz Gain Flatness ±0.5dB/26MHz High Band:11.70~12.75GHz Cross POL. Isolation 25dB(Typ.) Output Frequency Range Low Band:950~1950MHz Image Rejection 40dB(Min.) High Band:1100~2150MHz Output VSWR 2.0:1(Max.) L.O. Frequency Low Band:9.75GHz P1dB 0dBm (Min.) High Band:10.60GHz DC Current Consumption 80mA(Typ.) L.O. Frequency Stability ±1.0MHz (Max.)@+25℃ Low/High Band Switching Low Band:0Hz ±2.0 MHz (Max.)@-30℃~+70℃ High Band:22KHz±4KHz L.O. Phase Noise -60dBc/Hz@1KHz POL. Switching Voltage 10.5~14.0V @Vertical -80dBc/Hz@10KHz 16.0~20.0V @Horizontal -100dBc/Hz@100KHz Relative Humidity 0%~95% Conversion Gain 60dB(Typ.) Operating Temperature -30℃~+70℃ Noise Figure 0.6dB(Typ.) Connector Type 75Ω Female Connector
• Superior Phase Noise performance, DVB-S2 (HDTV) compliant
• Low Noise Figure
• Higher Conversion Gain
• Excellent Cross Polarization Isolation
• Ultimate Reliability
• High quality weather protection
OFFER [OEM box] [white box]
50 pcs/ctn
canton box size: 56*34.5*30 cm
1.Where has this product been sold?
Cover seven continents,224 countries in the world.
2. What certification does the products have?
CE,GMC
3.What kind of package can you offer?
OEM box with your brand, white box, gift box
