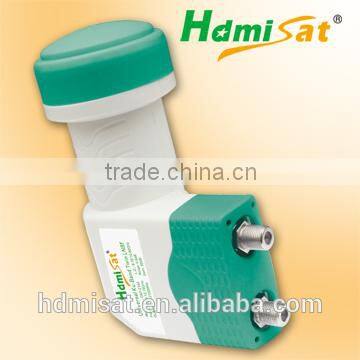

Digital Univesrsal Ku-Band Twin LNBF
- 5000000 Piece / Pieces per Month
- zhuhai/shenzhen
- T/T Credit Card
You May Like
-
universal Ku-Band single LNBF
-
Digital ready Ku-Band Universal Twin LNBF(GKF-2152)
-
Strong Ku-Band Universal Octo LNBF For High End Market
-
Strong Ku-Band Universal Quattro LNBF For High End Market
-
2016 new best hot-selling modulator Home Agile Modulator with loop (Double A/V signal input)
-
Home Agile Modulator(CATV/TV channel selectable) GC-AV04
Product Details
Brand Name | HDMISAT | Model Number | GKF-2152 | |
Place of Origin | Guangdong, China |
Product Description
Specifications
1.Low noise figure2.Low power consumption
3.High quality weather protection
Features
2. Low noise figure
3. Easy installation
4. Low power consumption
5. High quality weather protection
Specifications
Item | Specification | Item | Specification |
Input Frequency Range | Low Band:10.70~11.70GHz High Band:11.70~12.75GHz | L.O. Phase Noise | -50dBc/Hz@1KHz -75dBc/Hz@10KHz -95dBc/Hz@100KHz |
Output Frequency Range | Low Band:950~1950MHz High Band:1100~2150MHz | Image Rejection | 40dB(Min.) |
Noise Figure | Low Band: 0.6 dB (Typ.) High Band: 0.6 dB (Typ.) | Output VSWR | 2.0:1 (Max.) |
Conversion Gain | 60dB (Typ.) | Output Power | 0dBm (Min.) (at 1dB gain compression) |
Gain Flatness | ±0.5dB/26MHz | Connector Type | 75Ω Female Connector |
Cross POL. Isolation | 25 dB (Typ.) | DC Current Consumption | 180mA (Typ.) |
L.O. Frequency | Low Band: 9.75 GHz High Band : 10.60 GHz | Low/High Band Switching | Low Band: 0 Hz High Band:22KHz±4KHz |
L.O. Frequency Stability | ±1.0 MHz (Max.)@+25°C ±2.0 MHz (Max.)@30°C~+70°C | POL. Switching Voltage | 10.5~14.0 V @VP 16.0~20.0 V @HP |
Operating Temperature | -30°C~+70°C |
