Home > Products > Order picker > AC drive electric order picker THA10A with free lift

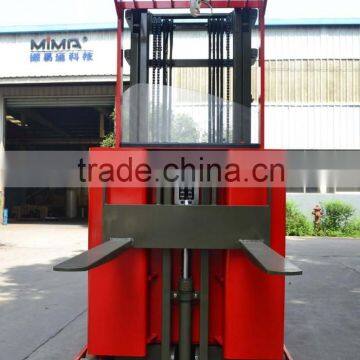

AC drive electric order picker THA10A with free lift
- 2000 Set / Sets per Month
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Anhui, China | Brand Name | MIMA | |
| Model Number | THA10A30 | Lift Mechanism | Lift Chain | |
| Lift Drive / Actuation | Electric Motor | Power | 2.2kw | |
| Rated Loading Capacity | 1000kg | Min. Lifting Height | 3000mm | |
| Max. Lifting Height | 4500mm | Table Size | 600*600mm | |
| Overall Dimensions | 1200*800*1700mm---2500*1350*2300mm | Weight | 2200kg | |
| Certification | SGS,ISO,CE | Warranty | 1 year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Description:
High Level Order Picker
1. The cover board with direction display, easy to know the driving direction even in high-order position;
2. The Vehicle have driving alram,and safety belt, to ensure the safe driving;
3. Mast Buffering function;
4. The high level order picker including automatic high level order picker and semi-automatic high level order picker;
5. THA Series High level order picker, rated load capacity: 1000kg, max lift height:4500mm
6. With driving direction display, easy to know the direction even in high level;
7. With driving alarm and safety belt;
8. Mast with buffering function.
9. it has free lift (lift height 700mm)
Descriptiom | THA10A30 |
Operation Type | Stand-on |
Rated Load Capacity (KG) | 1000 |
Load center MM | 450 |
Max Lift Height (mm)--H | 3000 |
Min. Road Clearance- Fork(mm)--H | 30 |
Max./Min.Height-Operation Compartment (mm)--H1 | 3233/243 |
Max./Min.Height-Overhead Guard (mm)--H2 | 5237/2250 |
Height-Mast Lowered (mm)-H3 | 2250 |
Height-Mast Extended (mm)-H4 | 5237 |
Overall Length (mm)--L | 2734 |
Front tread (mm)--L1 | 942 |
Rear tread (mm)--L2 | 702 |
Length-Fork (mm)-L3 | 1802 |
Overall Width (mm)—W
| 1080
|
Working platform size mm | 600*600 |
Fork Width-Outer (mm)--W2 | 700 |
Min Turning Radius (mm)-Ra | 1640 |
Wheel Type | PU |
Wheel Size-Drive (mm) | 230*70 |
Rear Wheel(mm) | 150*90 |
Banalce Wheel-(mm) | 150*50 |
Travel Speed-Laden/Unladen-(km/h) | 4/4.8 |
Lift Speed-Unladen-(mm/s) | 110/125 |
Gradeability-Laden/Unladen-% | / |
Driving Motor (KW) | AC1.1 |
Lifting Motor (KW) | 3 |
Steering Motor (KW) | 0.75DC |
Battery-V/AH | 24/480 |
Charger V/A | 24/70 |
Service Weight (with battery) KG | 2600 |
