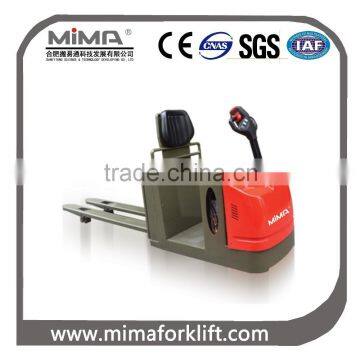

MIMA popular electric 2000kg low level order picker with high quality THC series
- 100 Unit / Units per Month
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
MIMA popular electric 2000kg low level order picker with good performance THC series
-
MIMA popular electric 2000kg low level order picker with competitive price THC series
-
MIMA popular battery 2000kg stand on order picker accept special design THC series
-
MIMA low level order picker for narrow aisles design
-
MIMA Order Picker with 300kg
-
MIMA order picker forklift trucks 1000KG(THA)
Product Details
Place of Origin | Anhui, China | Brand Name | MIMA | |
Model Number | THC20 | After-sales Service Provided | Overseas third-party support available |
Product Description
MIMA popular electric 2000kg low level order picker with high quality THC series;
Electric low level order picker;
THC series low level order picker;
Rated Load capacity: 2000kg;
Max. Lift height: 200mm;
Narrow aisles design;
With direction show, warning light, safety belt;
Adequate protection system...
The order picker is very useful for multiple small-lot order picking. Our range of order picker forklifts is available in different specifications and model and has been imported form trusted manufacturers. These order pickers are offered in only low level horizontal as well as multi level. The order pickers are battery operated and are appreciated for their exclusive features.
Model | THC20 | ||
Standard | Power Type | Battery | |
Operate Type | Stand-on | ||
Rated Capacity | Q(kg) | 2000 | |
Load center | C(mm) | 600 | |
T & y R r I e m | Wheel Type-Front/Rear | polyurethane tire | |
Front Wheel | φ215*75 | ||
Rear Wheel | φ80*70 | ||
Balance wheel | φ100*40 | ||
Tyres No. -front/rear (X=Drive wheel) | 1X+2/4 | ||
Ground clearance-Backrest | h1(mm) | 1406 | |
Max. Height--Fork lift | h2(mm) | 120 | |
Min. Height---Fork | h3(mm) | 85 | |
Overall Length | 11(mm) | 2450 | |
Length-to Fork Face | 12(mm) | 1311 | |
Wheel Base | y(mm) | 2117 | |
load distance | x(mm) | 985 | |
Overall Width | b1(mm) | 730 | |
Tread Front/rear | b3/b4(mm) | 500/365 | |
Fork Dimensions | mm | 1200*175*75 | |
Width across forks | b5(mm) | 540 | |
Aisle width for pallet 1000*1200 | Ast(mm) | 3045 | |
Trurning radius | Wa(mm) | 2300 | |
F u n c t i o n | Travel Speed -laden/unladen | km/h | 4.6/5.6 |
Lift Speed -laden/unladen | mm/s | 26/34 | |
Lowering speed -laden/unladen | mm/s | / | |
Max. Gradeability -laden/unladen | % | 6/10 | |
P o w e r | Drive Motor type | AC | |
Driving Motor (S2 60) | kw | 1.5 | |
Lift motor type | DC | ||
Lift Motor (S3 15%) | kw | 2.2 | |
Battery V/AH | V/AH | 24/210 | |
Weight | Battery | kg | 200 |
Service Weight | kg | 1000 | |
Steering | Steering type | Mechanical | |
Parking Brake model | regenerative braking | ||
Service Brake-Operation type | Electromagnetic |
Standard packing: nude packing,wrapped by polybag;
Options packing:wooden pallet or case if possible;
Warranty:
1): 12 month for frame,pump,controller,motor with right operation;
2): 12 months for battery and changer;
3):easy-broken items not in our responsibility,like wheel,bearing,carbon brush, friction disk,ignition switch,wire,plastic parts etc;
Banyiting sicence & technology developing co.,ltd was established in 1994,with 20 years experiences in material handling equipments.Our factory located in the science & technology culture and ancient city of hefei,Anhui province.It is about 400 kilometers away from the Shanghai city,45 minutes by air or 2.5 hours by high-spped train.We are high-tech enterprise,specializing in R&D and designing electric forklift,and material handling solutions for different industries.We have ISO9001:2008 Quality Management System Certification,the People's Repulic of China Special Equipment Production License and Hefei City Innovative Enterprices.All products with CE certification and SGS certification.
Now MIMA brand have 12 major series,more than 50 products,such as the electric pallet truck,electric pallet stacker,reach truck,forklift,tow tractor,narrow aisle forklift,special forklift,AGV etc.We supply the 500KG-100000KG material handling solutions to the clients,to achieve products serialization and large-scale manufacture.All MIMA products are widely used in medicine,food,chemical,electronics,machinery,furniture and many industries.
If you have any requirements or inquiry on that,pls don't hesitate to contact with us.
