4 direction forklift
Negotiable
/ Set
1 Set(Min.Order)
- 200 Set / Sets per Month
- T/T
You May Like
Product Details
| Place of Origin | China | Brand Name | MIMA | |
| Model Number | TFB |
Product Description
Specifications

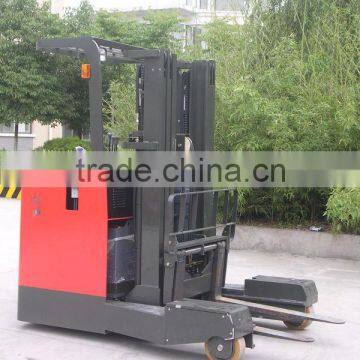

4 direction forklift, it can move 4 directions, backward and forward, right and left. It's used to handle long material.| Description | 4-way reach truck |
| Model | TFB20-60 |
| Load capacity | 2000kg |
| Load center | 500mm |
| Max lifting height | 6000mm |
| Free lift height | 2090mm |
| Tilting angle (forward-backward) | 3/5 |
| Wheel type | polyurethane solid tyre |
| Mast forwarding length | 685mm |
| Fork size | 1200×100×45mm |
| Fork spread | 247~780mm |
| Overall length (with forks) | 2620mm |
| Overall width | 1682mm |
| Overall height mast closed | 2679mm |
| Overall height fork raised (with backrest) | 6875mm |
| Overhead guard height | 2320mm |
| Outside turning radius | 1965mm |
| Min.intersecting aisle | 2824mm |
| Max.walking speeds | 7.5/8.5km/h |
| Lifting speeds (loaded/unloaded) | 117/243km/h |
| Grade abitity | ≤10% |
| Driving wheel | φ343*108 |
| Front wheel | φ267*114 |
| Balance wheel | φ180*76 |
| Min under-clearance | 80 |
| Service brake | electromagnetic |
| Parking brake | electromagnetic |
| Battery | 48V/400Ah |
| Charger | 48V/50A |
| Driving motor | 5.5kw(AC) |
| Lifting motor | 7.5kw |
| Control system | MOSFET |
