High Speed corrugated single face line / 2 ply corrugated cardboard making machine

Technical parameters

1,Mill Roll Stand Drive: Driven by hydraulic

2,Clip paper range: The max.: 1600 mm; the min.: 500 mm

3,Clip paper diameter: The max.: Φ1500mm; the min.: Φ350mm

4,Unilateral maximum load: Maximum 3000 kg

5,Paper frame spindle diameter: Φ200mm

6,Air source working pressure (MPa):0.6---0.9Mpa

7,Work power: voltage 380 v    frequency:50 HZ

8,Machine main power:4.0kw

9,Overall dimension :3450×1600×1650(L×W×H)

Hydraulic system parameters

1.Working pressure(MPa):  12~16 MPa

2.The hydraulic cylinder work scope (swing): Φ100mm×460mm

3.The hydraulic cylinder diameter (clamp): Φ63mm×800mm

4.Hydraulic Station motor power: 4.0kw    continuous working

5.Hydraulic station electromagnetic valve working voltage:Hydraulic station electromagnetic valve working voltage

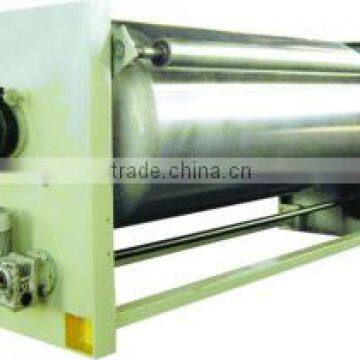

SH-900D preheater 2sets

Technical parameters

*Working width:1600mm

*preheater diameter:φ900mm

*Angle adjusting range:60~220 ℃

*Steam temperature:150~200℃           *Steam consumption:0.25t/h

*Steam pressure:0.8~1.3MPa

*Working power:Electricity pressure380V   Frequency50Hz

*Total power:0.55kw

*Dimension:3000mm×1000mm×1100mm(L×W×H)

Adsorption type single facer machine    1set

* Working width:  Max 1600mm    *Min 900mm

*Max mechanical speed :100m/min     *Economic speed:60-80m/min

*Temperature requirement:160~200℃

*Total power:38.45kw            *Working power:  380V  50Hz

*Machine size:3400mm×1300mm×1300mm(L×W×H)

Machine Features :

1.Paper guide adopt wind adsorption, maintain the stability of the state of corrugated type stare blankly at a high speed.

2.By the fan through the  vacuum chamber make corrugated paper adsorpt within the scope of the corrugated roller 180 degrees forming negative pressure zone, to complete the corrugated rolling.

3.Lower corrugated roller the suction slot width less than 2 mm, can be deducted or exempted single face corrugated board stripe.

4.Transmission part adopts universal joint transmission, isolation vibration source, make the drive more smooth, reliable operation, maintenance stronger

5.Reducer casing adopt with immersion oil lubrication, closed gear transmission, reducing machine vibration

6.Adopt automatic cycle for glue, pneumatic glue and reset, has the buffering effect.

7.Glue area electric adjustment, gluing department runs independently when stopping, to prevent the paste to dry up.

8.The upper rubber roller surface specially reticulate hand-cut and chromium plating processing.

9.Corrugated roller adopt with 48CrMo alloy roller, universal joint drive, frequency conversion control, electric adjustment glue amount.

Paper conveyor lifting bridge    1set

Technical Parameter:

* Working width: 1600mm

*Max mechanical speed :100m/min     *Working speed:60-80m/min

Machine size:Machine size:9000mm×3400mm×3550mm

With paper roll diameter: Front upper φ135mm ,back upper φ135mm

Slow conveyor roller diameter:drive roll φ135mm,passive roller φ135mm

                        stretch roll φ85mm   , hang rollφ85mm

*Electricity: 380V   50Hz    Total Power: 3kw

Slitting and cross cutting paper stacker   1set

Technical Parameter:

Working width:1600mm

*Max cutting speed:60-80m/min

Paper cutting scope:Max 9999mm,  Min 500mm

Paper cutting precision:±1mm at uniform velocity

Cardboard requirement:raw paper <360g/,core paper <200g/,thickness3-14mm , water content <10%,Min width 1000mm ,warping degree <30mm.

 Relative humidity:20%~90%

 Relative temperature:5~50 degree

Air Pressure :0.6~0.9 MPa

Paper cutting knife roll diameter:φ188 mm

Paper guide roll diameter:front upper φ165mm(sun wheel),front lower φ135mm, back upper:φ165mm(sun wheel), back lower:φ135mm

working voltage: 380V   50Hz  electricity 80A

Total power:35.14kw

Machine dimension :2800mm×1600mm×1500mm(L×W×H)

Technical Parameter:

Working width:1600mm

The longest paper folding length:1500mm

Maximum stack height:300mm

Characteristics

1.Transportation department include three sections , the first period is to separate single tile, the second period is stacking single tile paper as tile shape,the third period is to transmit smoothly single tile paper to stacking machine.

2.Stacking department is pit type stack structure, each time the maximum stack height 300 mm

3.Paper Output side,equipped with the standard paper receiving frame made of aluminum alloy roller, convenient packaging, palletizing directly.
