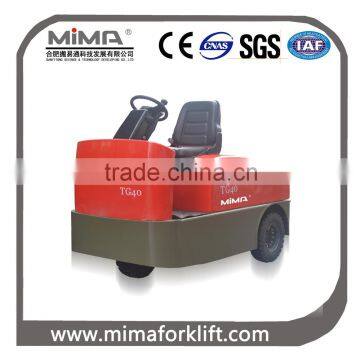

MIMA Electric 13200bs tow tractor with reliable performance TG series
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
MIMA Electric 8800bs tow tractor with competitive price TG series
-
MIMA Electric seated 4000kgs tow tractor with roof TG series
-
MIMA battery power seated 6000kgs tow tractor with good performance TG series
-
MIMA tow tractor with different battery capacity for your options
-
Electric tow tractor with High-power battery
-
MIMA popular battery seated 6000kgs towing tractor with good performance TG series
Product Details
| Condition | New | Place of Origin | Anhui, China | |
| Brand Name | MIMA | Model Number | TG60 | |
| Type | Other, TOW TRACTOR | Power Souce | DC Motor | |
| Rated Loading Capacity | 6000kg | Max. Lifting Height | 1320 mm | |
| Min. Lifting Height | 110mm | Fork Length | 0 mm | |
| Fork Width | 0mm | Overall Dimensions | 2210*1070*1320mm | |
| Certification | SGS,ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
MIMA Electric 13200bs tow tractor with reliable performance TG series ;
Main Features;
1. Robust tow tractor with pneumatic tire for indoor and outdoor use;
2. Comfortable operation;
3. Weather protection cabin (optional);
4. High-power battery with long work hours;
5. different battery capacity for your options;
6. with EPS steering system,more comfortable for operation;
7.long working time;
| TG40 | TG60 | ||||
| Standard | Power Type | Battery | Battery | |||
| Operate Type | Seated | Seated | ||||
| Rated Capacity | Q(kg) | 4000 | 6000 | |||
| Rated Drawbar Pull | F(N) | 800 | 1200 | |||
| wheel base | y(mm) | 1040 | 1040 | |||
| Weight | Service Weight | kg | 920 | 1000 | ||
| Axle load without load,front/rear | kg | 365/555 | 410/590 | |||
| T y r e | Wheel Type-Front/Rear | Solid rubber / Penumatic Rubber | ||||
| Front Wheel | 4.00-8 | 4.00-8 | ||||
| Rear Wheel | 4.00-8/6PR | 4.00-8/6PR | ||||
| Tyres No. -front/rear (X=Drive wheel) | 1 / 2X | 1 / 2X | ||||
| Tread Front/rear | b2(mm) | 0/870 | 0/870 | |||
| D I m e n s I o n s | Overall Height incl. cab | h5(mm) | 2045 | 2045 | ||
| Height of seat | h3(mm) | 895 | 895 | |||
| Height of coupler center (from floor) | h1(mm) | 210/275/340/405 | 210/275/340/405 | |||
| Hiehgt of platform,wothout load | h2(mm) | 610 | 610 | |||
| Length of loading platform | b3(mm) | 790 | 790 | |||
| Rear Overhang | L2(mm) | 405 | 405 | |||
| Width of Loading platform | L3(mm) | 390 | 390 | |||
| Overall Length | L1(mm) | 1790 | 1790 | |||
| Overall Width | b1(mm) | 990 | 990 | |||
| Min. Ground Clearance | m(mm) | 140 | 140 | |||
| Trurning radius | Wa(mm) | 1650 | 1650 | |||
| Min. pivoting point distance | b4(mm) | 600 | 600 | |||
| F u n c t i o n | Travel Speed -without load | km/h | 8/14 | 7/17 | ||
| Max. Traction (S2 5) | N | 3800 | 4500 | |||
| Max. Gradeability -laden/unladen | % | see the graph | ||||
| Driving Motor (S2 60) | kw | 3 | 4.5 | |||
| Battery voltage /rated capacity(5h) | V/AH | 24/490 | 48/280 | |||
| Battery weight | kg | 390 | 475 | |||
| Option-battery power | AH | 280,350 | 350 | |||
| Drive control type | electricnic /stepless | |||||
| Noise level | dB | 66 | 66 | |||
Standard Packing: nude packing,wrapped by polybag;
1. 12 months warranty;
2. over-seas after-sale service if necessary;
Hefei Banyitong Science & Technology Developing Co., Ltd, established in 1994, we are professional manufacturer in material handling equipments and special logistic equipment, our brand "MIMA" have 12 series and 50 models according to long-time technology innovating and patent collection, including battery pallet truck, electric pallet stacker, reach truck, counterbalance forklift, electric tow tracotr, order picker, 4-directional forklifts, side-loading forklift and special logistic equipments, there are extensive used in Pharmaceutical, foodstuff, Chemical Industry, electronics Industry, Machinery Industry, Furniture,logistic industries etc;
If you have any requirements or suggestion on that,pls don't hesitate to contact with us.
