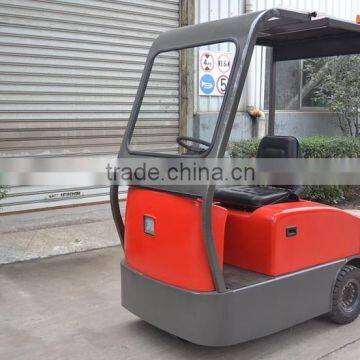

MIMA popular battery seated 8800lbs tow tractor with roof TG series

FOB Price

US$ 1,000 - 50,000 / Unit

1 Unit(Min. Order)

Port SHANGHAI
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Anhui, China
Brand Name	MIMA	Model Number	TG
Type	Other, TOW TRACTOR	Power Souce	DC Motor
Rated Loading Capacity	6000kg	Max. Lifting Height	1320 mm
Min. Lifting Height	110mm	Fork Length	0 mm
Fork Width	0mm	Overall Dimensions	221010701320mm
Certification	SGS,ISO	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

MIMA popular battery seated 8800lbs tow tractor with roof TG series ;

Product Description

Main Features;
1. Robust tow tractor with pneumatic tire for indoor and outdoor use;
2. Comfortable operation;
3. Weather protection cabin (optional);
4. High-power battery with long work hours;
5. different battery capacity for your options;
6. with EPS steering system,more comfortable for operation;
7.long working time;

Descriptiom

Model No.

TG40

TG60

Standard

Power Type

Battery

Operate Type

Seated

Rated Capacity

Q(kg)

4000

6000

Rated Drawbar Pull

F(N)

800

1200

wheel base

y(mm)

1040

Weight

Service Weight

920

1000

Axle load without load,front/rear

365/555

410/590

T
y
r
e

Wheel Type-Front/Rear

Solid rubber / Penumatic Rubber

Front Wheel

4.00-8

Rear Wheel

4.00-8/6PR

Tyres No. -front/rear (X=Drive wheel)

1 / 2X

Tread Front/rear

b2(mm)

0/870

D
I
m
e
n
s
I
o
n
s

Overall Height incl. cab

h5(mm)

2045

Height of seat

h3(mm)

895

Height of coupler center (from floor)

h1(mm)

210/275/340/405

Hiehgt of platform,wothout load

h2(mm)

610

Length of loading platform

b3(mm)

790

Rear Overhang

L2(mm)

405

Width of Loading platform

L3(mm)

390

Overall Length

L1(mm)

1790

Overall Width

b1(mm)

990

Min. Ground Clearance

m(mm)

140

Trurning radius

Wa(mm)

1650

Min. pivoting point distance

b4(mm)

600

F
u
n
c
t
i
o
n

Travel Speed -without load

km/h

8/14

7/17

Max. Traction (S2 5)

3800

4500

Max. Gradeability -laden/unladen

see the graph

Driving Motor (S2 60)

4.5

Battery voltage /rated capacity(5h)

V/AH

24/490

48/280

Battery weight

390

475

Option-battery power

280,350

350

Drive control type

electricnic /stepless

Noise level

Packaging & Shipping

Standard Packing: nude packing,wrapped by polybag;

Our Services

1. 12 months warranty;

2. over-seas after-sale service if necessary;
