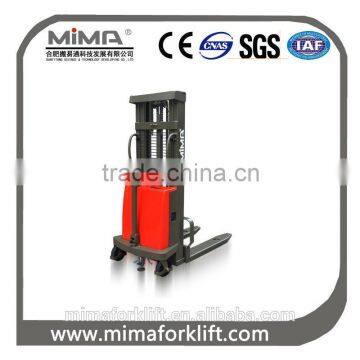

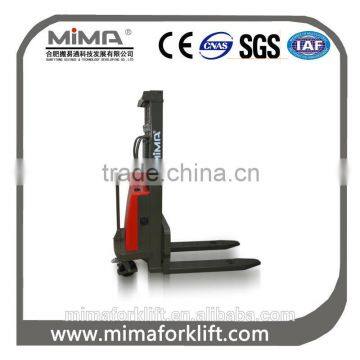

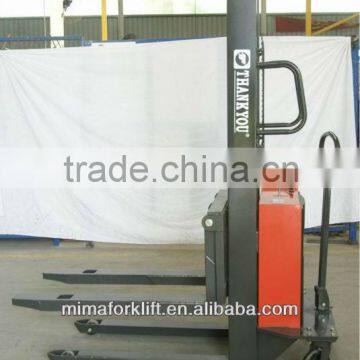

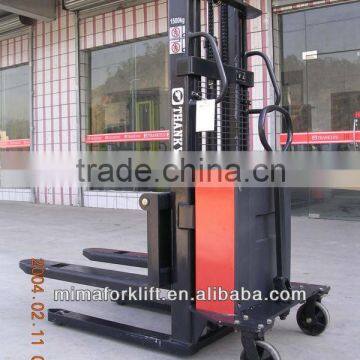

Semi Electric Pallet Stacker(TA Series)

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Anhui, China
Brand Name	MIMA	Model Number	TA
Type	Powered Pallet Truck	Power Souce	Other, electric lift
Rated Loading Capacity	1000kg~2000kg	Max. Lifting Height	3500mm
Min. Lifting Height	1600mm	Fork Length	1000mm
Fork Width	160mm	Certification	CE,ISO,SGS
After-sales Service Provided	Overseas third-party support available

TA Series walkie pallet stakcer, used for narrow place, main for retail and manufacturing industry.

Description Model No.	TA10-16/TA15-16/ TA20-16	TA10-24/TA15-24/ TA20-24	TA10-30/TA15-30/ TA20-30	TA10-35/TA15-35/ TA20-35
Rated Load Capacity --KG	1000/1500/2000	1000/1500/2000	1000/1500/2000	1000/1500/2000
Load Capacity At Max. Height(KG)	1000/1500/2000	1000/1300/1500	500/800/1250	400/600/750
Max. Lift Height (MM)	1600	2400	3000	3500/
Load Center MM	500	500	500	500
Overall Length (MM)--L1	1610/1610/1630		1610/1610/1630
Overall Width (MM) -b1	824		824
Height (MM)- Mast Lowered -H1	2075	1775	1825	2325
Height (MM)- Mast Extended-H5	2075	2960	3060	4060
Height (MM)- Handle -H2	1186		1186
Height(MM)-- Fork -h	85/85/90		85/85/90
Wheelbase -- (MM) -y	1250/1250/1280		1250/1250/1280
Fork Size L×W (MM)	100016058/ 100016058/ 100017258		100016058/ 100016058/ 100017258
Min. Road Clearance --mm -m	25/25/25		25/25/25
Front Tread --MM--b3	520/510/510		520/510/510
Rear Tread --MM--b2	704		704
Min. Turning Radius --MM-Wa	1416
Front Tyre --(MM)	Φ80*70
Rear Tyre --(MM)	Φ180*50
Fork Distance (MM)--b4	670/670/682
Battery V/AH- Domestic Brand	12/120
Charger V/A	12/15
Lift Motor (KW)	1.6		1.6
Service Weight (with battery)KG	310/395/435	375/480/550	380/485/554	395/525/595
