Home > Products > ECG Machine > ECG Machine Digital ECG EKG Monitor

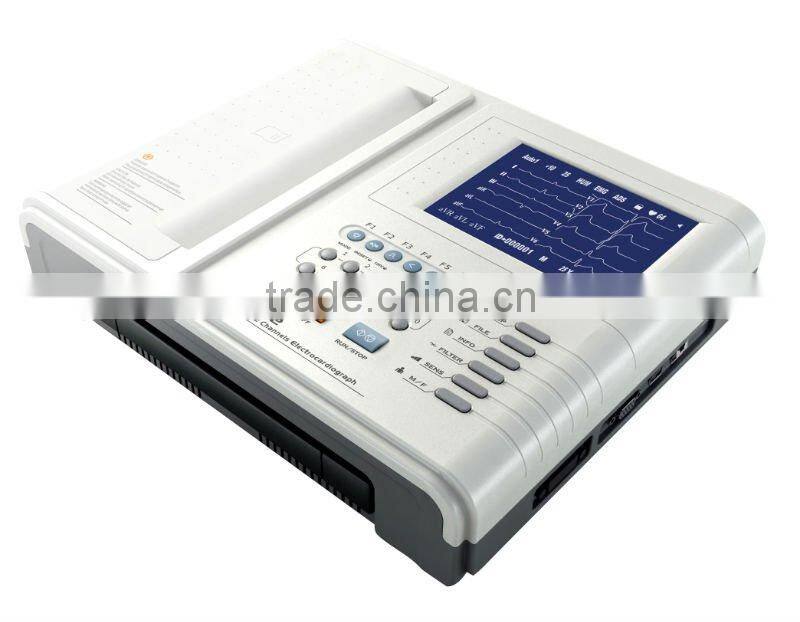

ECG Machine Digital ECG EKG Monitor

FOB Price

US$ 600 - 1,200 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Pathological Analysis Equipments		Brand Name	Jumper ECG
Place of Origin	Guangdong, China		Model Number	ECG JPD-E12

EKG
1.12 leads
2.5.7" LCD screen displays parameters & waveform
3.Real-time ECG waveform,save and replay data of 16 patients

ECG machine Digital ECG EKG monitor 12 leads

Features :

Portale 6channel 12leads machine

Working modes:Manual /Auto/ Arrhymia analysis modes

112mm,3/6 channels format recording

Built in rechargable Li-ion battery

Adapte 110-230V ,50/60 Hz AC power supply

Real-time ECG waveform,16patients save and replay

Built in USB/RS232 interface

Feasible Paper size :112mm roll / Z fold

5.7" large LCD displays working parameters and waveform

ECG archive software optional

Specification:

Safety standard	IEC60601-1 class I, type CF
Lead	Standard 12 Leads, Lead change automatically
Resolution	12 bit / 1000Hz
Operation mode	Manual/Auto/Analysis modes
Filter	AC, EMG filter
Drift filter	Anti-drift system
Input circuit	Floating; Protection against Defibrillator effect
CMRR	>100dB (with filter)
Input circuit current	<0.1μA
Input impedance	≥50ΜΩ
Calibrating voltage	1mV±3%
Frequency response	0.05Hz~160Hz (IEC)
Time constant	>3.2seconds
Noise level	≤15Vp-p
Threshold	≤20μV
Sensitivity	Auto 2.5, 5, 10, 20, 40mm/mV
Recording system	High resolution thermal printer
Paper speed	25, 50mm/s±3%
Recording paper	112mmx20m, roll/fold paper
Power supply	AC: 220V / 110V, 50/60Hz DC: 14.4V rechargeable NI-Ion battery (2200mAh)
LCD display	320x240 graphic, 5.7 inch LCD
Dimensions	285×265×72mm
Weight	2.50kg

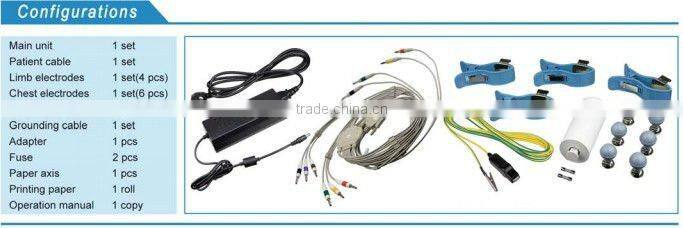

Configurations :
