complete details photos of boiler pellet boiler wood pellet

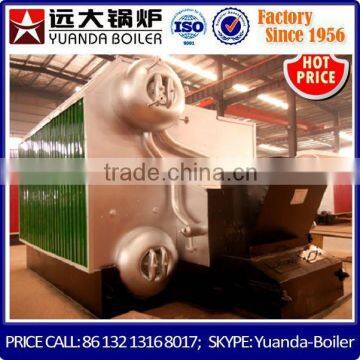

SZL Double-drum Water Tube Packaged Biomass Boiler Description:

1)       With Our Exclusive Technology: Cyclone 2nd-burning room design

2)       86% high efficiency with biomass fuel

3)       “D” type structure, offset bigger furnace, Fast pressure up

4)       2-8ton/hr in Fast-packaged Type

5)     Applied for all kinds biomass waste as fuel, wood pellet, wood chips, rice husk etc.

Honors of SZL series biomass boiler:

1) National Scientific and Technological Progress Second Prize

2). Singapore New Product Expo Golden Lion Award

Yuanda Biomass Boiler Systems

Reduce Carbon, Reduce Emissions, Reduce Operating and Fuel Costs

Yuanda Boiler is a leader in the development of biomass boiler technology, we have specialized model for all kinds biomass fuels use --- SZL biomass boiler

SZL complete details photos of boiler pellet boiler wood pellet specification:

SZL boiler pellet characteristic

1. With special fuel hopper and fuel discharge device

The fuel hopper and discharge device is the most important to the boiler safe operation, the fuel discharge device can automatically adjust the fuel quantity based on steam needs, greatly avoid fire back

2. Special air distribution design

As biomass fuel is with low carbon, it’s important to arrange air distribution in reasonable proportion, in order to control the furnace temperature and avoid coking, make the burning sufficiently

3. Big volume furnace and new arch design

With large heating area, greatly increase the furnace temperature, reduced insufficient burning, enhance the fuel burning and boiler efficiency

4. To protect ash deposition and corrosion of the heating area

Usually there is high content of alkali metal in the biomass pellet, then the fuel ash fusion is lower, this is the main reason for ash deposition and corrosion of the heating area, in this case, we make the convection heating area with wear-resistant process, greatly avoid the effect to the boiler operation caused for deposition and corrosion of the heating area

5. Cast Refractory Ceramic Lining

Yuanda Biomass Boiler Systems are equipped with high temperature cast refractory ceramic lining for longer life. This cast refractory/ceramic lining was designed to be completely modular

SZL complete details photos of boiler pellet boiler wood pellet picture:

boiler pellet accessories:

More Steam Boiler Model:
SZL2-1.25-ALL,SZL2-1.6-ALL,SZL2-2.5-ALL

SZL4-1.25-ALL,SZL4-1.6-ALL,SZL4-2.5-ALL
SZL6-1.25-ALL,SZL6-1.6-ALL,SZL6-2.5-ALL,

SZL8-1.25-ALL,SZL8-1.6-ALL,SZL8-2.5-ALL,

SZL10-1.25-ALL,SZL10-1.6-ALL,SZL10-2.5-ALL,

SZL15-1.25-ALL,SZL15-1.6-ALL,SZL15-2.5-ALL,

SZL20-1.25-ALL,SZL20-1.6-ALL,SZL20-2.5-ALL,

SZL25-1.25-ALL,SZL25-1.6-ALL,SZL25-2.5-ALL,

SZL30-1.25-ALL,SZL30-1.6-ALL,SZL30-2.5-ALL

More Hot Water Boiler Model:

SZL1.4-0.7/95/70-AⅡSZL2.8-0.7/95/70-AⅡSZL2.8-1.0/95/70-AⅡSZL4.2-1.0/115/70-AⅡDZL7-1.0/115/70-AⅡ

We sell well in more than 30 provinces and regions in China and in south-east Asia, Asia, Africa, South America, Middle East, Russia, etc.

Enterprise Concept: Quality, Sincerity, Creditability

We Yuanda Boiler have over 30years Experienced  Engineer Team + 500ton/year Production Alibility

FAQ:

Q1: How to install a boiler?

A1: Yuanda Boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance

Q2:How many years is the boiler’s life span

A2: The boiler is designed for 10years life span, but under good maintenance, usually the boiler can use at least 16years, Yuanda Boiler provide full life after-sales service to each sold boiler

Q3: How to choose a boiler model?

A3: Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, Yuanda Boiler will suggest a suitable model based on your usage

Q4: How is the warranty term?

A4: If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.

A4: Tell us below for us to confirm a boiler model and offer the right boiler price:

You need steam boiler or hot water boiler?

what's capacity and the pressure you need?

what fuel you will use, coal, biomass, gas or oil ?

Send your Inquiry Details in the Below, Click "Send" Now J

To get our completed boiler offer with detailed price list and technical specification
