Product Details
| Condition | New | Type | Natural Circulation | |
| Usage | Industrial | Structure | Other, 3 pass fire tube boiler | |
| Pressure | Low Pressure | Style | Horizontal | |
| Fuel | Other, biomass pellet | Place of Origin | Henan, China | |
| Brand Name | YUANDA BOILER, YUANDA BOILER | Model Number | Biomass & wood chip Burner steam boiler | |
| Output | Other, steam hot water | Dimension(L*W*H) | Depends | |
| Weight | different according to different size | Certification | CE ISO SGS, ISO CE SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Low Pressure and Mixed biomass pellets Fuel biomass boiler
1.Introduction of Low Pressure and Mixed biomass pellets Fuel biomass boiler
Based on the advanced combustion technology, our company designed and developed biomass pellet burner using cheap biomass pellet as a fuel for combustion with WNS series boiler. This series of products adopt half composite combustion gasification technology, with reasonable structure, automatic filling, high thermal efficiency, sufficient burning, no pollution, 30-60% lower operating cost gas or oil fuel burner boiler.

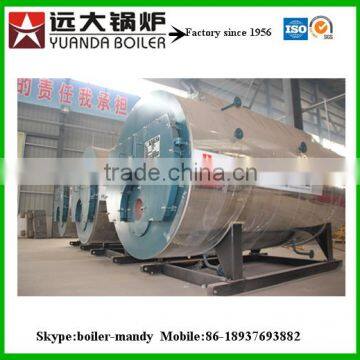

2. Product show of Low Pressure and Mixed biomass pellets Fuel biomass boiler
3. Technical datasheet of Low Pressure and Mixed biomass pellets Fuel biomass boiler
Boiler model | Rated thermal power | Rating pressure | Feed water temperature | Return water temperature | Fuel consumption | Thermal efficiency | Weight | Dimension | ||||
Light oil | Heavy oil | natural gas | liquid gas | City gas | ||||||||
MW | MPa | ℃ | ℃ | Kg/h | Kg/h | m3 /h | m3 /h |
| MW | MPa | ℃ | |
WNS0.7-0.7/95/70-Y(Q) | 0.7 | 0.7 | 95 | 70 | 65.5 | 67.3 | 84.2 | 29 | 176 | 89 | 4.3 | 3561×1690×1910 |
WNS1.4-0.7/95/70-Y(Q) | 1.4 | 0.7 | 95 | 70 | 129.6 | 132.2 | 165 | 57.3 | 346 | 89.2 | 7.0 | 4111×1950×2199 |
WNS2.8-0.7/95/70-Y(Q) | 2.8 | 0.7 | 95 | 70 | 256 | 261.9 | 323.6 | 109 | 682 | 89.2 | 9.5 | 4732×2150×2448 |
WNS4.2-0.7/95/70-Y(Q) | 4.2 | 0.7 | 95 | 70 | 380 | 390.6 | 450 | 164 | 1020 | 89.7 | 16 | 5500×2600×2990 |
WNS5.6-1.0/95/70-Y(Q) | 5.6 | 1.0 | 95 | 70 | 503 | 517 | 642 | 209 | 1321 | 89.7 | 24.6 | 6450×2800×3200 |
WNS7-1.0/95/70-Y(Q) | 7 | 1.0 | 95 | 70 | 628 | 643 | 805 | 264 | 1654 | 90.3 | 26.2 | 6800×2900×3394 |
WNS10.5-1.0/95/70-Y(Q) | 10.5 | 1.0 | 95 | 70 | 940 | 965 | 1182 | 400 | 2417 | 90.8 | 37 | 7150×3200×3540 |
WNS14-1.0/95/70-Y(Q) | 14 | 1.0 | 95 | 70 | 1250 | 1301 | 1597 | 520 | 3299 | 91.2 | 55 | 8200×3400×3826 |
4. Advantages of Low Pressure and Mixed biomass pellets Fuel biomass boiler
1. The biomass burning boiler Integrated the advantages of chain type biomass boiler and gas boiler.It is biomass fuel boiler of low cost, energy conservation, environmental protection and thermal efficiency can reach above 90%.
2. Installation is simple, maintenance is convenient.
3. The structure of three return, threaded pipe technology and the characteristics of the wet back structure, increase the heating area. improve the efficiency of the boiler.
5.Our certificates
Henan Yuanda boiler Co,. Ltd, located in Xihua country, Henan province, is the leading manufacturer of industrial boiler in China. We are professional in manufacturing boilers for 60 years till now(established in 1956). Our company is one of the leading enterprises which firstly obtained the national boiler manufacturing license in China. We have our own factory, professioanl engineers and sales team. Our products are not only well-sold in China, but also export to lots of countries and regions. Our aim is "Yuanda warm every corner of the world".
Our products series include more than 150 kinds. Mainly includes:
- 0.2-20ton/hour industrial boilers with below 2.5Mpa pressure
- Steam boiler or hot water boiler
- Fuel: coal or biomass or gas or oil etc.
- Model: DZL, SZL, WNS, LHS, LNB, LSC etc.
