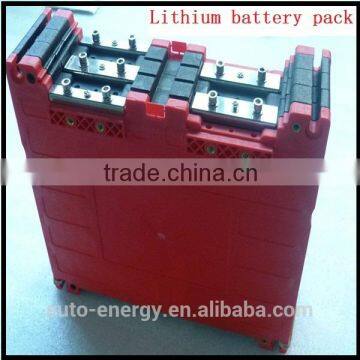

Long cycle life lifepo4 12v 72ah car battery lithium type

Item

     Basic parameters

Model

12V72AH

Material of Anode/Cathode

LiFePO4/Graphite

Size

70(T)×340(W)×295(H)(mm)

Weight

About 9.5Kg

Nominal capacity

72Ah

Nominal Voltage

12V

Discharge cut-off voltage

8V

Charge voltage

14.6V

Standard charging

0.2C constant current charge to 14.6V,

 then constant voltage 14.6V charge till charge current decline to≤0.05C

Standard discharging

0.2C CC discharge to 8V.

Low temperature performance

0.2C capacity higher than 70% of nominal capacity under -20°C

High temperature performance

0.5C capacity higher than 98% of nominal capacity under 55°C

Standard charge/discharge cycle life

Cycle life of standard charge/discharge capacity

after 2000 cycles greater than 80% of initial capacity

Max .continual charge current

100A

Max. continual discharge current

200A

Max. Charge/discharge pulse current  (10S)

500A

Operating temperature

Charging: 10~45°C, Discharging:-20~55°C

Storage temperature

Less than 1 year: 0~25°C

Less than 3 months:-10~45°C

No

Model

Nominal capacity

(AH)

Nominal voltage

(V)

Size

(mm)

Cycle life

1

LFP10215160P

20AH

3.2V

10*215*160

³ 2000

2

LFP10460320P

100AH

3.2V

10*460*320

³ 2000

3

LFP15210260P

60AH

3.2V

15*210*260

³ 2000

4

LFP10320230P

50AH

3.2V

10*320*230

³ 2000

5

LFP20320230P

100AH

3.2V

20*320*230

³ 2000

6

LFP18460320P

200AH

3.2V

18*460*320

³ 2000

7

LFP380380S

20AH

3.2V

Diameter38*H380

³ 2000

8

LFP75380S

100AH

3.2V

Diameter75*H380

³ 2000

9

LFP55380S

50AH

3.2V

Diameter55*H380

³ 2000

10

LMT55380S

45AH

2.4V

Diameter55*H380

³ 20000

11

LFPT55380S

45AH

1.8V

Diameter55*H380

³ 20000

12

12V100AH

100AH

12V

70*340*295

³ 1500

14

48V50AH

50AH

48V

260*380*260

³ 1500

15

LMO55200S

30AH

3.7V

Diameter55*H200

³ 1000
