Home > Products > Battery Pack Battery Module > 24V 100ah lipo battery for ev/ hev/ electirc scooter/UPS

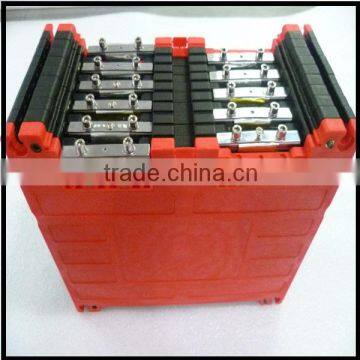

24V 100ah lipo battery for ev/ hev/ electirc scooter/UPS

FOB Price

USD $975 - $998 / Pack

5 Packs(Min.Order)

Port shenzhen/HK
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	AET
Model Number	24V100AH	Type	Li-Ion
Nominal Voltage	Other, 24V	Size	Other, 165(T)250(W)315(H)(mm)
Nominal Capacity	100AH

Product Description

Specifications

24V 100ah lipo battery for ev/ hev/ electirc scooter/UPS
- 3000 cycles life
- <25kg
- 120wh/kg;220wh/L
- ROHS/CE/MSDS/UN38.3

24V 100ah lipo battery for ev/ hev/ electirc scooter/UPS

Item	Basic parameters
Model	24V100AH
Material of Anode/Cathode	LiFePO4/Graphite
Size	168(T)×340(W)×295(H)(mm)
Weight	About 23Kg
Nominal capacity	100Ah
Nominal Voltage	24V
Internal resistance	≤8mΩ
Energy density	≥120Wh/kg at 0.2CDC
Volumetric energy density	≥220WH/L at 0.2CDC
Discharge cut-off voltage	16V
Charge voltage	29.2V
Standard charging	0.2C constant current charge to 29.2V, then constant voltage 29.2V charge till charge current decline to≤0.05C
Standard discharging	0.2C CC discharge to 16V.
Low temperature performance	0.2C capacity higher than 70% of nominal capacity under -20°C
High temperature performance	0.5C capacity higher than 98% of nominal capacity under 55°C
Standard charge/discharge cycle life	Cycle life of standard charge/discharge capacity after 3000 cycles greater than 80% of initial capacity
Max .continual charge current	100A ( 1C)
Max. continual discharge current	200A (2C)
Max. Charge/discharge pulse current (10S)	400A (4C)
Operating temperature	Charging: 10~45°C, Discharging:-20~55°C
Storage temperature	Less than 1 year: 0~25°C Less than 3 months:-10~45°C

Features:

1. Good cell consistency, High energy density.

2. Low internal resistance, low thermal generated and high safety performance.

3. Good high temperature performance.

4. High capacity, low self-discharge rate and long cycle life.

5. Dimension and type(capacity type and ratio type) can be customized.

Applications:

1. EV: pure electric car, pure electric bus, hybrid electric vehicles, hybrid electric bus, recreational vehicles, chill cars.

2. Storage: solar and wind complementary stored energy streetlights, energy storage systems, household energy storage.

3. Power Supply: communication base station power supply, utility power supply, communication industry,

emergency power supply and other system standby power etc.

Packaging & Shipping

OEM Service

What we can do:

1. All of our products have proceeded comprehensive testing before shippment;

2. Support imprint your logo on products;

3. OEM orders are warmly welcome!

Warranty and Return:

1. All products have been tested before ship out;

2. All products have 1 year warranty. ( We will Changing or Refunding our products if problems appearanced in 1 year, in the case of correct operation according to the technical specification.)

3. We own the best after-sale service. If any problems happen, our team will do our best to solve for customers.
