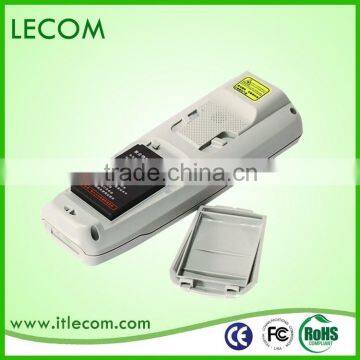

Outdoor Durable Portable Wireless 128M Memory Industrial PDA

155*76*29mm

CPU

SUMSANG S3C2451 (533MHZ)

Weight

320g(with battery)

Operating System

Microsoft Windows CE 5.0 OS(Multi-lingual),

SDK for multiple programming languages including C#,,VC++ to assist system develope

Memory

RAM: 128MB; F-ROM: 256MB

Extension: Micro SD/TF slot(a maximum of 16G)

Screen

3.5’TFT-LCD QVGA(240*320)color touch screen

Power(Dual-Power Mode

Master battery: 3.7V 2800MAH rechargeable lithium battery

Working hours: 8 or above (depending on the actual environment)

Charging time: 3.5 hours

Data Collection

1Dbarcode

scanner

Laser Barcode scanner, Scan Rate:100 scan /sec.

Readable Barcodes: UPC-A; UPC-E; UPC-E1; Ean-8; Ean-13;

Bookland Ean; Code 128; Ucc/Ean-128; Code 39;

Trioptic Code 39; Code 39 Full AsciiI; Code 93;

Code 11; Interleaved 2 of 5; Discrete 2 of 5;

Codabar; MSI; GS1 DataBar 14; GS1 DataBar Limited;

GS1 DataBar Expanded

2Dbarcode

scanner

1D Symbologies:

Upc/ Ean, Bookland Ean, UCC Coupon Code, Essn Ean,

Code 39, Code 128, GS1128.ISBT 128, Trioptic Code 39,

Codabar, MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5,

Korean3/5, Matrix 2/5, Code 32, Code 93, Code 11,

Inverse 1D, GS1 DataBar, Composite Codes

2D Symbologies:

PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse,

MaxiCode, QR Code, Aztec, Aztec Inverse

Postal Codes:

U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal,

Australian Postal, Netherlands KIX Code,USPS 4CB

One Code/Intelligent Mail, UPU Fics Postal

HF RFID

13.56MHZ 14443AB

LF RFID

125K

Input

Soft keyboard

English,Pinyin,and Chinese handwriting

Hard keyboard

27+2 key alphanumeric keyboard

Scanning start key

The central key

Communication

WI-FI WLAN

(Default)

Communication on the 802.11b/g Wifi WLAN with a

rate of 54MB/s,

Meets the requirements of the CISCO CCX2,

3 security standards

Supports CISCO AP and security regulations.

Wide-area wireless

network

GPRS/BT(Optional)

Provides a GSM/GPRS and BT wireless communication module

Supports GSM/GPRS Class10and GSM07.10 multiplexing and BT

Camera

Camera with 3million pixels and fill light

GPS

48 channels

Positioning Accuracy: Less than 2.5m

speed accuracy:less than 0.01m/s

Working

Environment

Operating temperature

-15~+50℃

Storage temperature

-20~+60℃

Operating humidity

Relative humidity:5-95%(no condensation)

Storage humidity

Relative humidity:5-95%(no condensation)

Endurable height

for dropping

Can endure multiple drops to a smooth concrete floor

from a height of 4 inches(1.2M)
