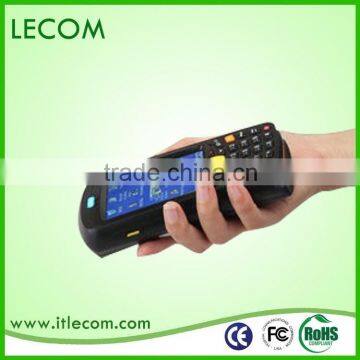

High Capacity SUMSANG S3C2451 CPU Wireless Barcode Scanner

FOB Price

USD $130 - $300 / Piece

1 Piece(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port Shengzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Type	Barcode Scanner
Interface Type	USB	Brand Name	LECOM
Model Number	LECOM-CE50 - Wireless Barcode Scanner	Place of Origin	Guangdong, China

Product Description

High Capacity SUMSANG S3C2451 CPU Wireless Barcode Scanner

Default configuration :Wifi+1D barcode scanner
Bluetooth, GPRS ,GPS,Camera for option;
2D scanner, 125K/134.2K/13.56M Hz RFID reader for options;
Win. CE 5.0 multi-language operation system;
SDK for free and Easy secondary development, compatible with different software;
RAM DDR2 128MB, F-ROM 256MB;Can support 16G for maximum extension.
High capacity 2800mA battery and low consumption;
Industrial rugged design, water-proof and protection grade(IP54) ;

Model		LECOM-CE50
CPU		SUMSANG S3C2451 (533MHZ)
Operating System		Microsoft Windows CE 5.0 OS(Multi-lingual),SDK for multiple programming languages including C#,,VC++ to assist system developer.
Memory	RAM	128MB
	F-ROM	256MB
	Extension	Micro SD/TF slot(a maximum of 16G)
Data collection: (4 options)	1D barcode scanner	Laser Barcode scanner ,Scan Rate:100 scan /sec. Readable Barcodes :UPC-A; UPC-E; UPC-E1; EAN-8; EAN-13; Bookland EAN; Code 128; UCC/EAN-128; Code 39; Trioptic Code 39; Code 39 Full ASCII; Code 93; Code 11; Interleaved 2 of 5; Discrete 2 of 5; Codabar; MSI; GS1 DataBar 14; GS1 DataBar Limited; GS1 DataBar Expanded;
	2D barcode scanner	1D Symbologies:UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN,CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR,MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5 , Korean3/5, Matrix 2/5,CODE 32,CODE 93, CODE 11, Inverse 1D, GS1 DataBar, Composite Codes 2D Symbologies:PDF417,MicroPDF417,Data Matrix, Data Matrix Inverse,MaxiCode, QR Code, Aztec, Aztec Inverse Postal Codes:U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal,Australian Postal,Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail,UPU FICS Postal
	HF RFID	13.56MHZ 14443AB
	LF RFID	125K
Screen		3.5’TFT-LCD QVGA(240*320)color touch screen
Input	Soft keyboard	English,Pinyin,and Chinese handwriting
	Hard keyboard	27+2 key alphanumeric keyboard
	Scanning start key	The central key
Communication	WI-FI WLAN(Default)	The product supports communication on the 802.11b/g Wifi WLAN with a rate of 54MB/s,which meets the requirements of the CISCO CCX2,3 security standards and supports CISCO AP and security regulations.
Communication	Wide-area wireless network GPRS/BT(Optional)	The product provides a GSM/GPRS and BT wireless communication module and supports GSM/GPRS Class10and GSM07.10 multiplexing and BT.
	CAMERA	Camera with 3million pixels and fill light
	GPS	48 channels;positioning accuracy: less than 2.5m;speed accuracy:less than 0.01m/s
Power(Dual-Power Mode)	Master battery	3.7V 2800MAH rechargeable lithium battery
	Working hours	8 or above (depending on the actual environment)
	Charging time	3.5 hours
Ingress protection		IP54
Dimensions	Ergonomic design	155mm(L)×76(W)×29(T)
Weight		320g(with battery)
Working Environment	Operating temperature	-15~+50C
	Storage temperature	-20~+60C
	Operating humidity	Relative humidity:5-95%(no condensation)
	Storage humidity	Relative humidity:5-95%(no condensation)
	Endurable height for dropping	Can endure multiple drops to a smooth concrete floor from a height of 4 inches(1.2M)

MOQ:1pc Handheld Terminal
Payment Terms: T/T, Western Union and paypal
Delivery Time: Within 30 days after receive 30% deposit.
Packing: Retail Box + Export Carton, 1 pc in a inner carton, 20 pcs into a out
Inner packing: 25.5*25.8*5.8 cm, G.W: 1kg
Outer carton: 57*59*28 cm, G.W: 21 kg
Accessory: 1 PDA + 1 adapter + 1 USB cable + 1 battery + 1base+ 1 touch pen
Shipping:
1. By Express: We deliver goods by DHL or UPS with door to door service, normally it will take 5-6 days to delivery
2. By Air : It will take 5-6 days to delivery, customer can pick up goods from airport by airway bill
3. By Sea: If you want, we can also arrange delivery by sea to main ports of worldwide from Shenzhen.
delivery time will be 20-40 days accordingly.

OUR SERVICES

Thank you for the interest about our products,we will handle the service after sale as following:
1).We offer 1 year warranty,any terminals with quality issue(Exclude human factors) can get repaired or replacement from us during this period.
2).If clients handle the service locally,we will free offer 1% complete units as spare terminals,2% LCD,Housing and keyboard.1% other spares.All the quality issue terminals should take picture and be reported,we will supply it if our spare parts is not enough.
3).For the product assemblement and repairment,we will send the video for your reference.If necessary,we will send technical staff to train client's repairer for free.
4).We will provide technical assistance for the whole life.
In case clients would like to extend 1 year warranty period in their market,we would suggest clients buy 2.5% terminals for replacement.And 2% LCD,Housing and keyboard.1% other spares.

COMPANY INFORMATION

Shenzhen Lecom technology co.,ltd was established in Jan 2008. Our focus is on research and development ("R&D"), manufacturing, sales and after sales support of industrial mobile devices. Our products and solutions are widely used in the logistics, retail, manufacturing, medical, and government sectors.
As the most prominent maker of industrial mobile devices in China,Lecom always begins at the client's point of view, providing high quality products and value added services to our clients.
