Home > Products > PVC Construction membrane > Advanced PVC Coated Tarpaulin Fabric-100% Polyester
Advanced PVC Coated Tarpaulin Fabric-100% Polyester
- Gaoming Guangzhou Shenzhen
- T/T
You May Like
Product Details
| Supply Type | Make-to-Order | Type | Other, construction membrance | |
| Pattern | Coated | Coated Type | PVC Coated | |
| Style | Plain | Width | Other, 200 CM~380 CM | |
| Technics | Woven | Feature | Blackout, Flame Retardant, Shrink-Resistant, Tear-Resistant, Waterproof | |
| Use | Awning, Home Textile, Industry, Military, Tent, Umbrella, Wedding | Certification | SGS, Other, SGS, CE | |
| Yarn Count | 1100 DTEX | Weight | 1050 or 1150 g/m2, 1050 or 1150 g/sqm | |
| Density | 30*30/20*20 inch | Model Number | 51052W2/51152W4 |
Product Description

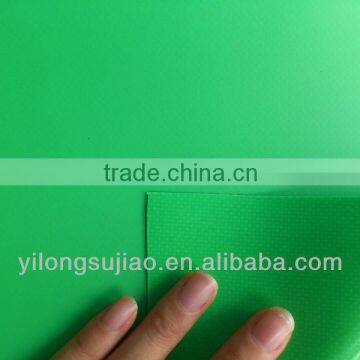

Advanced PVC coated tarpaulin fabric-100% polyester
PVC coating fabric is a high performance polyester PVC coating composite material. It is made of high quality polyester woven fabric as basic fabric, the sizing the PVC agent on the surface of basic fabric, plasticizing and lacquering. It has becom the desirable choice for large outdoor high-grade material.
Certificate: CE, SGS, ISO9001, ISO14001
Flame Retardancy: M2/B1
Application: Outdoor Construction Membrane
Yarns: 1100/2200 dtex
Density: 30*30/20*20 inch
Type of coating: PVC both sides
Lacquering: PVDF or Acrylic both sides
Weight: 1050 ,1150, 1350 g/m2
Normal Width: 250 and 300cm. Others can be 200-380 cm.
Normal packing roll length is 30m and 50 m. Others could be discussed with factory.
Packaging | Strong paper tube inside and kraft paper covered, packed to cardboard cartons | ||
Shipping Way | By sea, by air or by express | ||
Quality control | 1.We have our own professional factory designer and specialized in this line for more than 10 years. 2.Best quality of PVC tarpaulin or oxford which is water-proof and fire retardant, also environmental and safe. 3. Double stitching throughout the unit with triple stitching 4. Quadruple stitching in key areas inside the base of the unit 5. Extra webbing reinforced strip on all the stress points and interior panels | ||
>> Product Technical Data:
| Products Index Parameter | |||
| Product Model | 51052W2 | 51152W4 | Ref.Test Method |
| Applications | Architecture Film | Architecture Film | |
| Material | PVC | PVC | |
| Grey Cloth | PES | PES | DIN60001 |
| Dtex of Yarns(warp/weft) | 1100 Dtex | 2200 Dtex | DIN EN ISO2060 |
| Weaving Type | P2/2 | L1:1 | DIN ISO9354 |
| Type of coating | PVC both sides | PVC both sides | |
| Lacquering | PVDF both sides | PVDF both sides | |
| Weight | 1050 g/m2 | 1150 g/m2 | DIN EN ISO 2286-2 |
| Normal Width | 300cm | 250cm | DIN EN ISO2286-1 |
| Tensile Strength(warp/weft) | 4200/4000 N/5cm | 5500/5000 | DN53354 |
| Tear Strength(warp/weft) | 550/500 N | 800/650 | DN53363 |
| Adhesion | 120 N/5cm | 120 | DIN55357 |
| Applicable Temperature | -30~+70°c | -30~+70°c | |

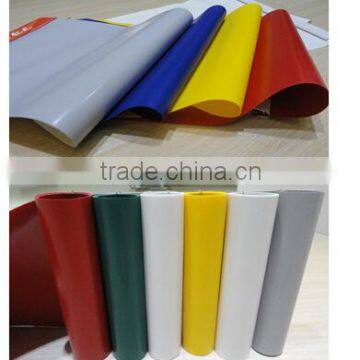

| Colors | Yellow,Red,Green,Blue,Grey | Yellow,Red,Green,Blue,Grey | |
| Flame Retardancy | M2/B1 | M2/B1 | |
| Light Fastness | > 6 | > 6 | DIN54004 |
| Environmental Management | ISO14001 | ISO14001 | |
| Quality Management | ISO9001 | ISO9001 | |
>>What are the features of our PVC coated fabric?

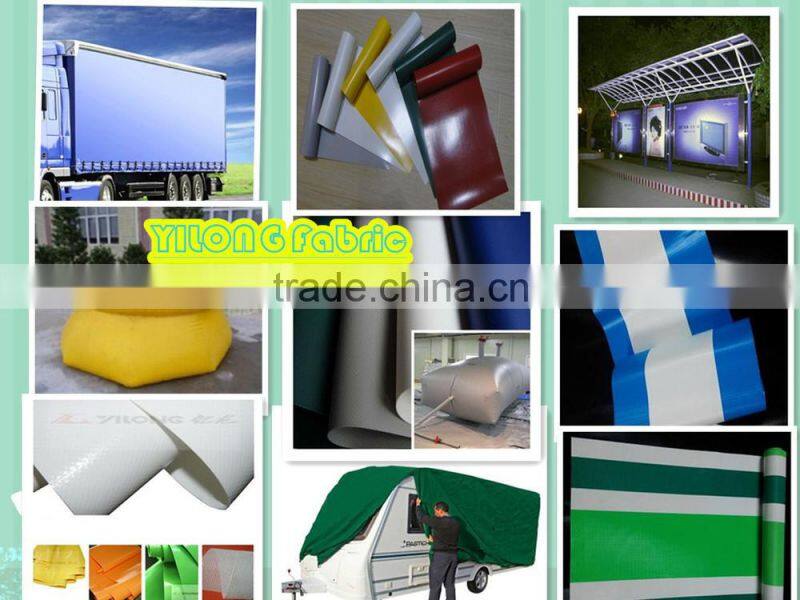

>>Application

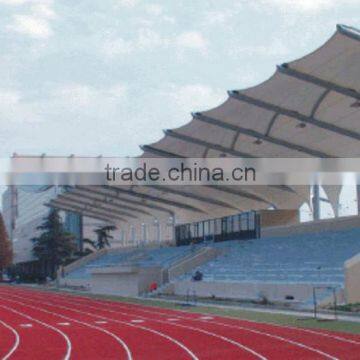

the roof of the large venue, artistic scene decoration, overpass canopy etc.

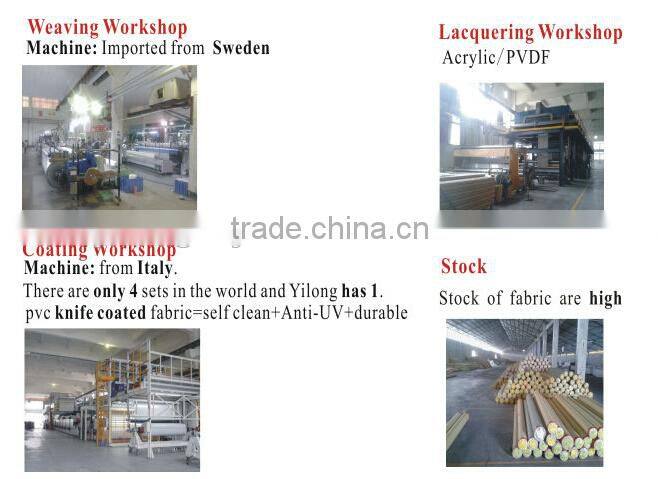

>>Equipments in the factory
>>Why choose Yilong
11 Year Experience and Perservance, high quality and good service time can tell.
>>Other products
11 YEAR PERSERVANCE AND EXPERIENCE
YiLong Advanced Material Technology Co., Ltd. was established in 2000, covering the area of more than 70,000 m2. Yilong company is a leading professional manufacturer who introduced European advanced pvc coated fabric technology into our own design. Every year, the annual pvc fabric producing capacity reach nearly 80 million square meters and 8000 tons of PS sheets. Our main products include construction membrane, tents, truck cover, pvc coated flex banner,inflatable material, pvc composite material, ps sheet etc. All of our products have passed certificates such as SGS,CE,ISO9001,ISO14001 etc.
>>Certificate of our products
Sample is for FREE.
Plz contact me if you are interested in our products:
skype: choice0312
Cel: +86 13702952112
