Tensioned Membrane Structure Building Structure
- Gaoming/Guangzhou/Shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Yilong | |
| Model Number | 51152W2 |
Product Description
Contruction Membrane
Tensioned membrane structure
New building structure
waterproof, UV resistant, heat insulation
self-cleaning, beautiful view
easy & short install
- Features:
- 1.High tensile strength(the span can reach the widest 150m without the roof and pillars).
- 2.High tearing strength(resist against typhoon of 10-12 grades).
- 3.Anti-UV.
- 4.High weather resistance.
- 5.Easy installation,good connection(short installtion period,flexible and easy to connect with other bulidings,suitable to move and remove the whole complete unit in situation and different terains).
- 6.Self-cleaning.
- 7.Lower cost than normal and traditional buliding.
- 8.Beautiful and unique ,usually use as a landmark buliding.
- 9.Friendly-envorinment.
- Technical data:
Model | 51052W2 | 51152W4 |
Application | Versatile tension membrane | Large building tension membrane |
Gram Weight(g/m2) | 1050 | 1150 |
Basic Cloth(Dtex) | 1100 | 2200 |
Width(cm) | 250 | |
Color | 650 | 650 |
Flame Retardancy Level | M2/B1 | |
Lacqering | Both sides with PVDF | |
Tensile Strength(Warp/Weft)DIN53354(N/5cm) | 4200/4000 | 6000/5500 |
Tearing Strength(Warp/Weft) DIN53363(N) | 550/500 | 850/750 |
Adhesion DIN55357(N/5cm) | 120 | |
Remarks | 1.Normal roll length is 30m,50m,others length need to discuss with factory. 2.Main color is white and can be customized according to YILONG color pantone. 3.Passed ISO14001 and ISO9001. | |

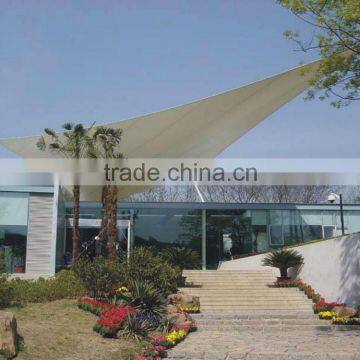

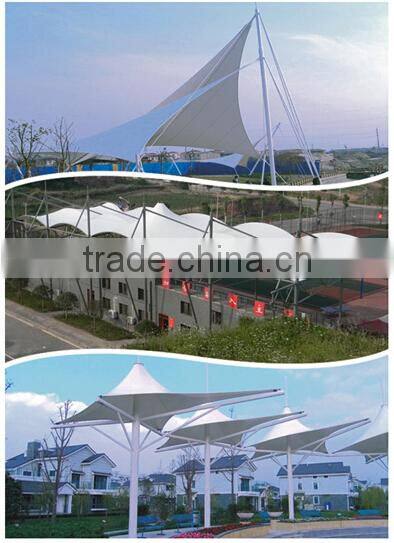

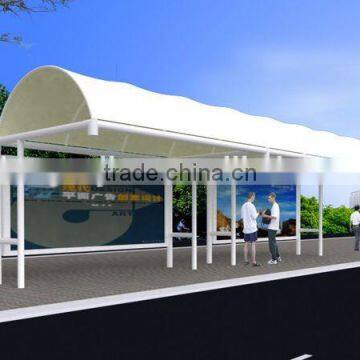

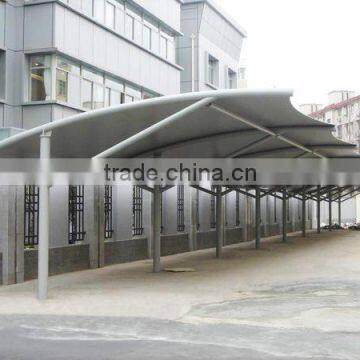

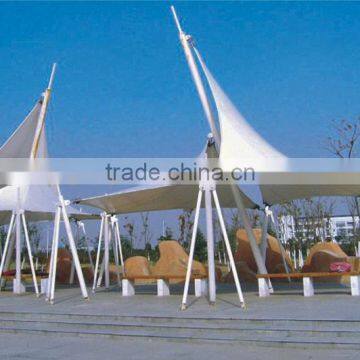

Applications:
This kind of Tension membrane structures can be widely used in seasonal or
permanent structures for indoor sports and recreational facilities as gymnasiums,
stadiums, swimming pools, cafeterias and food courts, exhibition and conventional
centers, canopies and vehicle parkings, etc
About YILONG:
YILONG Fabric:
Including consturction membrane,turck cover,inflatable material such as water tank,biogas digesters,tents,pvc coating flex banner;laminated flex banner,sun-shae fabric and color stripe fabric ;and ps sheet.
YILONG'S CE:
YILONG'S Equipment:
Production Process:
