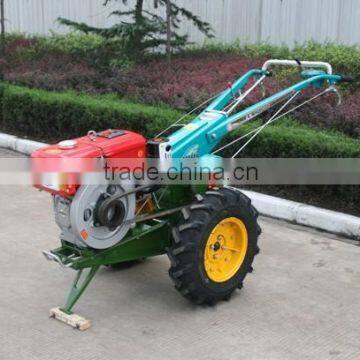

Walking Tractor

ITEM

UNIT

DESIGN VALUE

Whole machine

Trademark or brand

/

Shuhe

model

/

SH81-1

type

/

Both drive and traction

overall sizes (LWH)

mm

2180×940×1150

Wheel track

mm

680-740(stepless regulation)

Min.ground   clearance

mm

200

minimum use quality

kg

352

Gears number (forward/reverse)

/

6/2

The gear theory velocity

km/h

1: 2.51  2:4.14  3: 6.62  4: 8.42 5:  13.93 6: 22.19

reverse1: 4.08 reverse2: 13.75

kind of drive

/

Triangle belt connect

starting mode

/

hand   starting(electric)

engine

Trademark or brand

/

Shuhe

type

/

Single cylinder

,horizontal type

,Water cooled (condensation),Four stroke ,The eddy current type

model

/

R180-2E(R180N-2A)

An enterprise name

/

Shandong Changlin Deutz-fahr Machinery Co.,Ltd

Number of cylinders

cylinder

1

cylindersize

mm

85×90

displacement

L

0.510

compression ratio

/

21:1

rated power

kW

5.88

rated speed

r/min

2200

air filter type,model

/

The   secondary   oil bath type

cooling system type

/

Water cooled (condensation)

working   pressure

kPa

100-120

volume

L

9.1

noise   silencer

size(long x width x   thickness or diameter x long)

mm

φ110×193

noise   silencer weight

kg

1.03

transmission system

Clutch type

/

 Monolithic   often joint friction plate

speed   changing box type

/

Meshing   spur   gears and sliding gear (3 + 1) x 2 type

running system

tire type (front/rear)

/

6.00-12(GB1192-82)

tire pressure (front/rear)

kPa

The   field work:80-120KPa   Transport operations:140-200KPa
