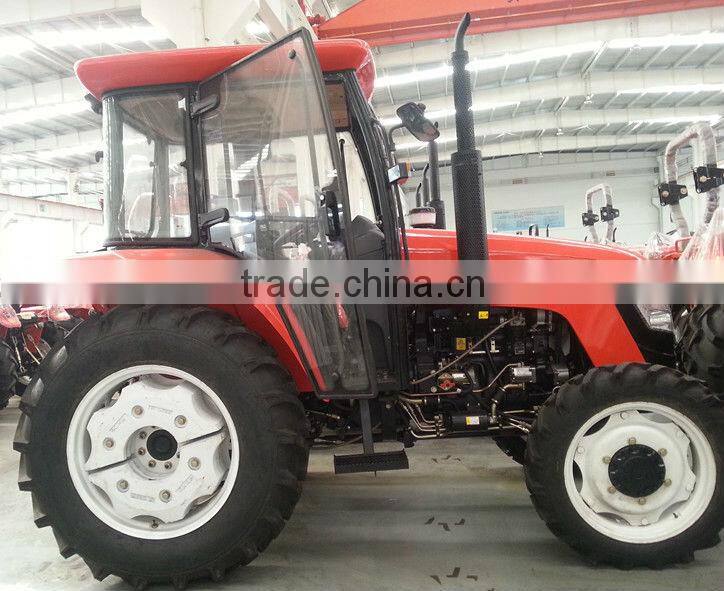

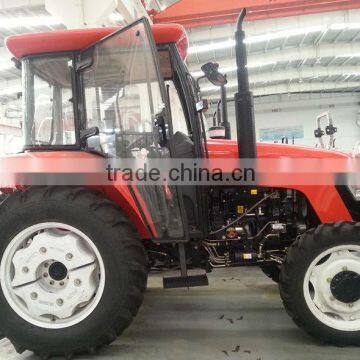

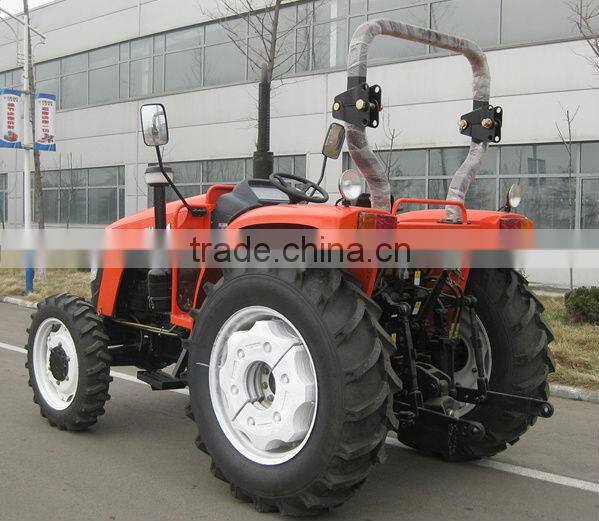

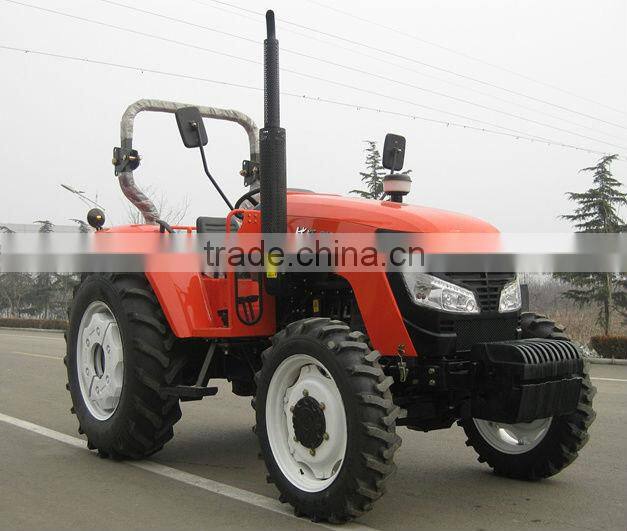

Farm Tractor Sh700-704( 2 or 4 Wheel )

MODEL

700/704

Engine Power kw/hp

51.5/70

Engine Type (cyl, T/NA)

4 ,NA

Rated Speed (rpm)

2200

Engine Torque (Nm @ engine rpm)

280;1500-1700

Specific Fuel Consumption (L/h)

≤15.02

Emission Regulation availability (Euro I,II,II)

stageⅡ

Cooling type

WC

Engine manufacturer

YTO

Engine Displacement(L)

4.58

Air filter type

Oil Bath

Fuel tank capacity (litres)

78

Exhaust pipe (Vertical/Horizontal)

Vertical

Cyclone pre-filte (YES/NO)

NO

Alternator (V/w)

14/900

Engine starte (kw)

3.7

TRANSMISSION

Type of clutch

Single, Dry

Total gears

8F+ 2R

Synchronized Gearbox (YES/NO)

NO

Min-Max speed (km/h)

3.04-34.71F/3.44-14.76R

Creeper availability(YES/NO)

NO

Mechanical Synchro Shuttle

NO

(YES/NO)

Differential lock (limited slip/100% lock)

100% lock

4WD engagement type

Mechanical

Max Drawbar Pull 2WD/4WD

20.25/22.2

Type of rear final drive (PLanetary, cascade),

Planetary/4

if yes how many satellite

760/1000

Pto speeds PT(rpm)

760/2200

PTO speed @ engine speed

540/760,2400

PTO engagement

8XΦ38/6XΦ35/21XΦ35

PTO independent clutch (YES/NO)

NO

PTO power (kw/hp)

43.8

Outlets pump type

gear pump

Max pressure (bar)

Max pump delyvery @ engine rpm

20/2000rpm
