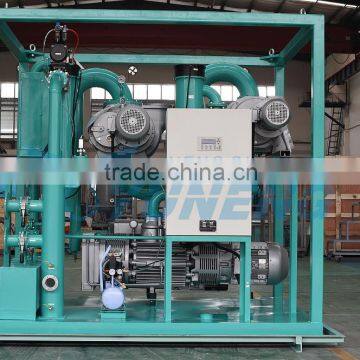

Stainless Vacuum Air Pumping Unit /Vacuum Drying Device

                  Stainless Vacuum Air Pumping Unit /Vacuum Drying Device

Stainless Vacuum Air Pumping Unit /Vacuum Drying Device   is mainly used for vacuum drying and vacuum oil-injecting for high voltage electrical transformer as 220KV, 500KV, ±800KV, 1000KV. Strong vacuum pumps make working vacuum degree to 10 Pa and limit vacuum degree to 1 Pa.

Features:

GIS connection available

Digital vacuum degree management

Anti-absorption

Machine can start fast

Strong vacuum pumping capacity

Stable performance

Easy operation

There is a combination of axial fan and condenser to deal moisture and gas from vacuum pump and roots pump, it can prolong time to change vacuum oil while meet emission standard.

This ZJ vacuum pumping unit is usually accepted by customers together with our ZJA vacuum oil purifier and GF dry air generator.

Custom options are always available!

Yuneng products list:

1. Insulation Oil Purification Series:

ZJA Ultra-high Transformer / Insulation Oil Filtration Machine (1000KV, ±800KV, 750KV, ±660KV project) ( 2 stage vacuum)

ZJA High-vacuum Transformer / Insulation Oil Filtration Machine (110KV-500KV project)) (2 stage vacuum)

ZJB Transformer / Insulation Oil Filtration Machine (≤110KV) (one stage vacuum)

ZJ Vacuum Pumping Unit (extract vacuum, dry transformer)

GF Dry Air Generator (produce dry air for operators to maintain transformer, reactors…).

JZ OLTC (on-load tap changer) online Oil Filtration Machine

Quantitative oil injection machine (customized product)

2. Turbine Oil Filtration machine:

JT coalescing dehydration oil filtration machine (dehydration by special filters)

DYJC online turbine oil filtration machine (dehydration by special filters and vacuum system)

ZJC-T vacuum oil filtration machine for turbine oil (dehydration by vacuum system)

3. Lubricating Oil Filtration machine:

ZJC-R vacuum Oil Filtration machine for lubricating oil (machinery oil, hydraulic oil, compressor oil, coolant oil, cutting oil..)

ZJC-MOil Filtration machine for OCS. (oil with high viscosity 22-320cst at 40°C)

4. Other kinds of oil filtration machine:

KYJ fire-resistance oil filtration machine (EHC oil)

LY plate-frame pressure oil filtration machine (simple, paper filtration)

YL mobile oil filtration machine (simple, cheap)

5. Waste oil regeneration machine (by chemicals or by high temperature distillation)

YNZSY used oil recycling machine (by chemicals)

YNZSY-LTY used tire oil recycling machine (by chemicals)

Waste oil distillation machine

6.Oil tester/ analyzer:

Dielectric oil breakdown strength tester

Water content tester

Inline Digital Flow Meter and Totalizer

Viscosity analyzer

Flash point analyzer (close cup)

Flash point analyzer (open cup)

Interfacial tension analyzer
