Power Transformer Maintenance -- ZJ Transformer Vacuuming Unit / Oil Filling
- 300 Set / Sets per Month
- Shanghai...Chongqing..etc
- T/T Credit Card
You May Like
-
ZJ Vacuum Pumping Unit / Dry Transformer by Vacuum / Oil Filling
-
CHINA ZJ Vacuum Pump Unit / Dry Transformer by Vacuum / Oil Filling for Sale
-
ZJ High Vacuum Pump Unit / Dry Transformer by Vacuum / Oil Filling for Sale
-
ZJ Ultra Vacuum Pump Unit / Dry Transformer by Vacuum / Oil Filling for Sale
-
ZJ Ultra Vacuum Degassing Unit / Dry Transformer by Vacuum / Oil Filling for Sale
-
ZJ Ultra Vacuum Degassing Unit / Drying Transformer by Vacuum / Oil Filling for Sale
Product Details
Condition | New | Place of Origin | Chongqing, China | |
Brand Name | YUNENG | Model Number | ZJ-Transformer Vacuuming Unit | |
Certification | CE&ISO Ceritificate | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

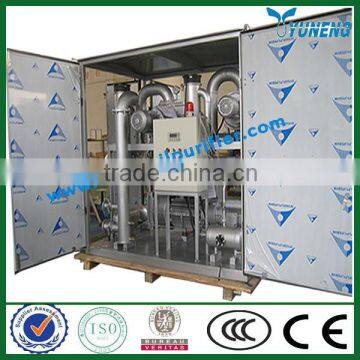

Transformer Maintenance--ZJ Transformer Vacuuming Unit/Oil Filling
transformer drying or oil-injecting by vacuum
ZJ Transformer Vacuuming Unit is mainly used for vacuum drying and vacuum oil-injecting for high voltage electrical transformer as 220KV, 500KV, ±800KV, 1000KV. Strong vacuum pumps make working vacuum degree to 10 Pa and limit vacuum degree to 1 Pa.
Features:
GIS connection available
Digital vacuum degree management
Anti-absorption
Machine can start fast
Strong vacuum pumping capacity
Stable performance
Easy operation
There is a combination of axial fan and condenser to deal moisture and gas from vacuum pump and roots pump, it can prolong time to change vacuum oil while meet emission standard.
Parameter | Unit | ZJ-70 | ZJ-150 | ZJ-300 | ZJ-600 | ZJ-1200 | |
Power Supply |
| 50Hz 380V 3-Phase 4-Wire (or as requested) | |||||
Power | KW | 4 | 6.5 | 7 | 11 | 18.5 | |
Limit Vacuity | Pa | ≤3 | |||||
Pumping Speed | L/S | 70 | 150 | 300 | 600 | 1200 | |
Pumping Level |
| 2 | |||||
Connection Diameter | mm | 50 | 80 | ||||
Size | Length | mm | 1200 | 1300 | 1400 | 1600 | 1750 |
Width | mm | 950 | 1000 | 1100 | 1200 | 1300 | |
Height | mm | 1500 | 1600 | 1700 | 1900 | 2100 | |
Weight | Kg | 300 | 400 | 500 | 1250 | 1560 |
This ZJ vacuum pumping unit is usually accepted by customers together with our ZJA vacuum oil purifier and GF dry air generator.
Custom options are always available!
For technical support, custom applications and design versatility, contact us today
Working onsite
After-sales Services
One year guarantee for product quality. (People damaged parts are charged).
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers required.
Free training for machines installation and operation of the staffs.
Founded in 1997, Chongqing Yuneng Oil-Filter Manufacturing Co., Ltd located in Chongqing China. Our company is a new and high-tech joint-stock enterprise. We specialize in the R&D, manufacturing, and marketing of oil, water and gas filtering and purification products and complete sets of related equipment. We gather a group of specialized talents with years of working experience and technological development. We can produce 1,000 sets of oil-filtering equipment and purification equipment for other fluids each year. So far we have sold over 15,000 sets of Yuneng-brand oil purifiers. Twenty of our new technologies have received national patents of invention. In 2004 and 2009, our company was rated as “new and high-tech enterprise of Chongqing” twice; there are eleven series products rewarded as “New and High-tech Products of Chongqing”. We have passed I S O 9 0 0 1 quality management certification; some products have passed CE certification, such as YNZSY used oil recycling machine, ZJA double stage vacuum oil purifier. Our products are popular in central South Asia, Middle-East, Europe, America and dozens of countries.In 2009, the latest statistic from Chinese market research center indicated that, among the domestic oil purifier industry, our company’ s market share, competiveness, ranks number one. Yuneng has become a famous brand in the middle-high oil treatment industry. Looking forward to be your supplier and welcome to visit Yuneng.
Yuneng products list:
1. Insulation Oil Purification Series:
ZJA Ultra-high Transformer / Insulation Oil Filtration Machine (1000KV, ±800KV, 750KV, ±660KV project) ( 2 stage vacuum)
ZJA High-vacuum Transformer / Insulation Oil Filtration Machine (110KV-500KV project)) (2 stage vacuum)
ZJB Transformer / Insulation Oil Filtration Machine (≤110KV) (one stage vacuum)
ZJ Transformer Vacuuming Unit (extract vacuum, dry transformer)
GF Dry Air Generator (produce dry air for operators to maintain transformer, reactors…).
JZ OLTC (on-load tap changer) online Oil Filtration Machine
Quantitative oil injection machine (customized product)
2. Turbine Oil Filtration machine:
JT coalescing dehydration oil filtration machine (dehydration by special filters)
DYJC online turbine oil filtration machine (dehydration by special filters and vacuum system)
ZJC-T vacuum oil filtration machine for turbine oil (dehydration by vacuum system)
3. Lubricating Oil Filtration machine:
ZJC-R Vacuum Oil Filtration machine for lubricating oil (machinery oil, hydraulic oil, compressor oil, coolant oil, cutting oil..)
ZJC-M Vacuum Oil Filtration machine for OCS. (oil with high viscosity 22-320cst at 40°C)
4. Other kinds of oil filtration machine:
KYJ fire-resistance oil filtration machine (EHC oil)
LY plate-frame pressure oil filtration machine (simple, paper filtration)
YL mobile oil filtration machine (simple, cheap)
5. Waste oil regeneration machine (by chemicals or by high temperature distillation)
YNZSY used oil recycling machine (by chemicals)
YNZSY-LTY used tire oil recycling machine (by chemicals)
Waste oil distillation machine
6. Oil tester/ analyzer:
Dielectric oil breakdown strength tester
Water content tester
Inline Digital Flow Meter and Totalizer
Viscosity analyzer
Flash point analyzer (close cup)
Flash point analyzer (open cup)
Interfacial tension analyzer
