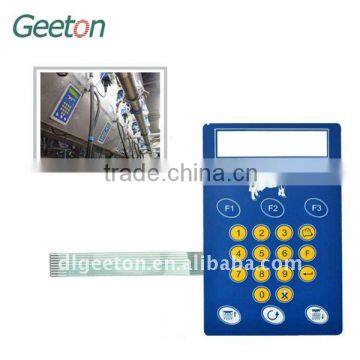

Screen Printing Custom Tactile Metal Dome Membrane Switch With LED Backlight

FOB Price

USD $0.5 - $3.9 / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China	Brand Name	Geeton
Model Number	GMS-007	Application	Other, Remote Controller, Industrial Meters
Keypad Button Material	Other, Poly

Screen Printing Custom Tactile Membrane Switch With LED Backlight

Metal Dome Membrane Switch Performance

Metal Dome Membrane Switch Performance
Electrical Performance
Circuit Grade	35V(DC),100mA,1 W
Loop Resistance	10Ω - 500Ω(According the trace length and materials to confirm)
Insulation Resistance	>100MΩ 250V(DC)
Dielectric Resistance	250VRms(50 - 60Hz/1 min)
Contact Chatter Time	≤5ms
Service Life	flat type≥5 million times
Service Life	tactile type:≥1 million times
Mechanical Properties
Operating Force	flat type 57-284g (2-10 Oz)
Operating Force	tactile type 170-397g (6-14 Oz)
Switch Stroke	flat type 0.1 - 0.5mm
Switch Stroke	tactile type 0.6 - 1.5mm
Environmental Parameters
Operating Temperature	-20°C - +80°C
Storage Temperature	-40°C - +85°C
Humidity	40°C,90%-95%,240 hours

Metal Dome Membrane Switch Type

Other Type of The Membrane Switch With LED

The Application Of The Metal Dome Membrane Switch

Workshops Pictures

Packaging

Customers Visit

Certifications

Any colours, any logos are acceptable, free samples service, leave an inquiry to know more detail about the Price, Shipping and Discount.
