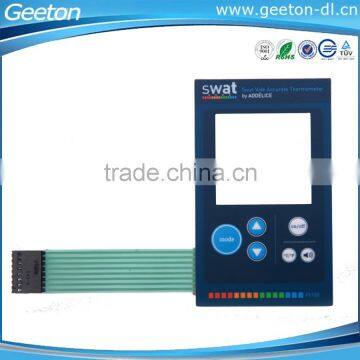

Custom Screen Printing PET Membrane Keypad Control Panel Switch Membrane
- 5000 Piece / Pieces per Month
- Dalian
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Poly Dome Membrane Circuit Boards
-
Poly Dome KeypadGraphic Overlay Panel
-
5 Button Membrane Switch With Leds
-
Graphic PMMA Panel For Panasonic Mini TV
-
2013 Custome Metal Dome Graphic Membrane Keyboard Switch Overlay Manufacturer In China
-
Glod-plating Metal Dome Waterproof PET Membrane Switch Keypad Overlay
Product Details
| Place of Origin | Liaoning, China | Brand Name | Geeton | |
| Model Number | Keypad control panel-L1 | Application | Other, Telecommunication Equipment, Industrial Equipment | |
| Keypad Button Material | Other, Poly |
Product Description
Custom Screen Printing PET Membrane Keypad Control Panel Switch Membrane
Switch Membrane Performance
Switch Membrane Performance | |
Electrical Performance | |
Circuit Grade | 35V(DC),100mA,1 W |
Loop Resistance | 10Ω - 500Ω(According the trace length and materials to confirm) |
Insulation Resistance | >100MΩ 250V(DC) |
Dielectric Resistance | 250VRms(50 - 60Hz/1 min) |
Contact Chatter Time | ≤5ms |
Service Life | flat type≥5 million times |
tactile type:≥1 million times | |
Mechanical Properties | |
Operating Force | flat type 57-284g (2-10 Oz) |
tactile type 170-397g (6-14 Oz) | |
Switch Stroke | flat type 0.1 - 0.5mm |
tactile type 0.6 - 1.5mm | |
Environmental Parameters | |
Operating Temperature | -20°C - +80°C |
Storage Temperature | -40°C - +85°C |
Humidity | 40°C,90%-95%,240 hours |
Switch Membrane Type
Other Type Of The Switch Membrane
The Application Of The Switch Membrane
Dalian Geeton Electronics Co., Ltd specializes in producing membrane switch, nameplate and automobile dashboard. We have established more than 12 years’ stable business partnership with TOSHIBA, SANYO and other international well-known enterprises.
Workshops Pictures
Payment & Shipping Term | |
Price | 0.5-3.0/piece |
Minimum Order Quantity | 100 pieces |
Port | Dalian |
Packaging Details | PE bag, Carton, Wooden crate |
Delivery Time | 10-12 days |
Payment Terms | L/C,T/T, Paypal |
Supply Ability | 150000 pieces per Month |
Packaging
Customers Visit
Certifications
Customers
Q: What does Geeton need for a customized membrane switch order ?
A: When you place a membrane switch order, the customers need to provide the Coreldraw or PDF file. If you do not have the file in the correct format, you can send all the details related to the products.
Q: What does Geeton need for a customized Graphic Overlay order?
A: When you place a Graphic Overlay order, you need to provide coreidraw or Graphic Overlay file and the BOM list to Geeton .
Q: What does Geeton need for other services?
A: For membrane switch & Graphic Overlay clone service, the customer needs to send us the samples concerned, and also the sharp photos of its front side and the back side.
Q: What kind of service to provide clients with?
A: If you have any questions about our products or company, do not hesitate to send us your inquiry to our customer service representatives. Your satisfaction is our pursuits.
Any colours, any logos are acceptable, free samples service, leave an inquiry to know more detail about the Price, Shipping and Discount.
