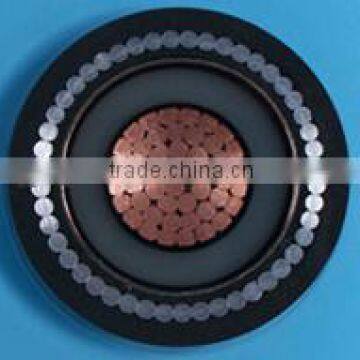

MIDDLE VOLTAGE MV 11KV COPPER CONDUCTOR XLPE INSULATED ALUMINUM WIRE ARMORED CABLE
- China main port
- T/T L/C D/P D/A
You May Like
-
Medium Voltage 35kV COPPER CONDUCTOR XLPE INSULATED STEEL WIRE ARMORED SWA POWER CABLE
-
High Voltage HV STEEL TAPE ARMORED CABLE 26/35kV COPPER CONDUCTOR XLPE INSULATED STEEL TAPE ARMORED CABLE
-
ELECTRIC CABLE MV CABLE 26/35kV COPPER CONDUCTOR XLPE INSULATED POWER CABLE
-
High Voltage 26/35kv Aluminum Conductor Xlpe Insulated Cable
-
hv 21/35kV Aluminum Conductor Xlpe Insulated Steel Wire Armored Cable
-
HV Cable 35kV XLPE CABLE, 3 Core Cable, Armored Cable
Product Details
| Place of Origin | Henan, China | Brand Name | jytop | |
| Model Number | single core | Insulation Material | XLPE | |
| Type | Medium Voltage | Application | Industrial | |
| Conductor Material | Copper | Jacket | Other, PVC or PE |
Product Description
Specifications
ALUMINUM WIRE ARMORED CABLE can be produced according to international standards such as ASTM,BS,DIN,NF &AS/NZ ect.MIDDLE VOLTAGE MV 11KV COPPER CONDUCTOR XLPE INSULATED ALUMINUM WIRE ARMORED CABLE
Main technical data of 6.35/11KV, Single core, Copper conductor, XLPE insulated, galvanized steel wire armored and PVC or PE sheath cable CABLE CONSTRUCTION: 6.35/11KV CU/XLPE/SWA/PVC or PE
Size | Nominal thickness of XLPE insulation(mm) | Approx. thickness of copper tape screen (mm) | Approx. diameter of armoring steel wire(mm) | Nominal thickness of PVC or PE(mm) | Approx. overall diameter of finished cable(mm) | Max. conductor D.C resistance @ 200C (Ω/km) |
1x25mm2 | 3.4 | 0.12 | 1.6 | 1.7 | 25.7 | 0.727 |
1x35mm2 | 3.4 | 0.12 | 1.6 | 1.8 | 26.7 | 0.524 |
1x50mm2 | 3.4 | 0.12 | 1.6 | 1.8 | 28.0 | 0.387 |
1x70mm2 | 3.4 | 0.12 | 1.6 | 1.9 | 29.9 | 0.268 |
1x95mm2 | 3.4 | 0.12 | 1.6 | 1.9 | 31.5 | 0.193 |
1x120mm2 | 3.4 | 0.12 | 2.0 | 2.0 | 33.9 | 0.153 |
1x150mm2 | 3.4 | 0.12 | 2.0 | 2.1 | 35.7 | 0.124 |
1x185mm2 | 3.4 | 0.12 | 2.0 | 2.1 | 37.3 | 0.0991 |
1x240mm2 | 3.4 | 0.12 | 2.0 | 2.2 | 39.7 | 0.0754 |
1x300mm2 | 3.4 | 0.12 | 2.0 | 2.2 | 41.9 | 0.0601 |
1x400mm2 | 3.4 | 0.12 | 2.5 | 2.4 | 46.5 | 0.0470 |
1x500mm2 | 3.4 | 0.12 | 2.5 | 2.5 | 50.6 | 0.0366 |
1x630mm2 | 3.4 | 0.12 | 2.5 | 2.6 | 54.7 | 0.0283 |
1x800mm2 | 3.4 | 0.12 | 2.5 | 2.7 | 58.6 | 0.0221 |
Main technical data of 6.35/11KV, Single core, Copper conductor, XLPE insulated, pure aluminum wire armored and PVC or PE sheath cable CABLE CONSTRUCTION: 6.35/11KV CU/XLPE/AWA/PVC or PE
Size | Nominal thickness of XLPE insulation(mm) | Approx. thickness of copper tape screen (mm) | Approx. diameter of armoring pure aluminum wire(mm) | Nominal thickness of PVC or PE(mm) | Approx. overall diameter of finished cable(mm) | Max. conductor D.C resistance @ 200C (Ω/km) |
1x25mm2 | 3.4 | 0.12 | 1.6 | 1.7 | 25.7 | 0.727 |
1x35mm2 | 3.4 | 0.12 | 1.6 | 1.8 | 26.7 | 0.524 |
1x50mm2 | 3.4 | 0.12 | 1.6 | 1.8 | 28.0 | 0.387 |
1x70mm2 | 3.4 | 0.12 | 1.6 | 1.9 | 29.9 | 0.268 |
1x95mm2 | 3.4 | 0.12 | 1.6 | 1.9 | 31.5 | 0.193 |
1x120mm2 | 3.4 | 0.12 | 2.0 | 2.0 | 33.9 | 0.153 |
1x150mm2 | 3.4 | 0.12 | 2.0 | 2.1 | 35.7 | 0.124 |
1x185mm2 | 3.4 | 0.12 | 2.0 | 2.1 | 37.3 | 0.0991 |
1x240mm2 | 3.4 | 0.12 | 2.0 | 2.2 | 39.7 | 0.0754 |
1x300mm2 | 3.4 | 0.12 | 2.0 | 2.2 | 41.9 | 0.0601 |
1x400mm2 | 3.4 | 0.12 | 2.5 | 2.4 | 46.5 | 0.0470 |
1x500mm2 | 3.4 | 0.12 | 2.5 | 2.5 | 50.6 | 0.0366 |
1x630mm2 | 3.4 | 0.12 | 2.5 | 2.6 | 54.7 | 0.0283 |
1x800mm2 | 3.4 | 0.12 | 2.5 | 2.7 | 58.6 | 0.0221 |
ALUMINUM WIRE ARMORED CABLE ALUMINUM WIRE ARMORED CABLE ALUMINUM WIRE ARMORED CABLE
