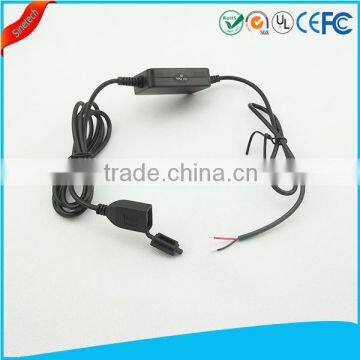

24v dc to 12v dc Step-down converter buck regulator module for charging
- 5000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
-
dc converter 24v to 5V converter step down cable with cigarette lighter for GPS navigation accessories
-
High quality 1M+0.5M length 24v dc to 12v dc Step-down converter
-
1M+0.5M length 24v dc to 12v dc Step-down converter for charging 1A output current
-
LM2596S DC-DC step-down power module BUCK 3A adjustable
-
2A booster board DC-DC boost module input wide voltage 2-24V to 5/9/12/24V adjustable 2577
-
2A booster board DC-DC boost module input wide voltage 2-24V to 5/9/12/24V dc dc converter
Product Details
Place of Origin | Guangdong, China | Brand Name | Sinetech | |
Model Number | DC DC converter | Output Power | 1 - 50W | |
Output Type | Single | Size | 50mm*25mm*16mm,55mm*35*15mm | |
Weight | 30g, 30g | Input Voltage | 24V | |
Output Voltage | 12V | Type | DC/DC Converters | |
Output Frequency | 0-400HZ | Output Current | 500mA~3A |
Product Description
24v dc to 12v dc Step-down converter buck regulator module for charging
Module Features
1 ) Maximum output current : 500mA ~3 A
2 ) Input voltage : 24 v
3 ) Maximum output voltage :12 v
4 ) Efficiency: > 95% ( efficiency of input and output pressure related )
5 ) Size : 55mm * 35mm * 15mm ( L * W * H )
Model | DC DC Converter |
Output power(W) | 6W~36W |
Input voltage(V) | 24VDC |
Output voltage(V) | 12V DC |
Conversion efficiency | 96% |
Isolation/Non-isolated | Non-isolated |
Output type | Singal |
Output current (Amp) | 500mA~3A, self-adaption |
Input/output interface | Wiring, customization available |
Load regulation rate | <1% |
Voltage regulation rate | <2% |
Ripple | <50mV |
Protection | Over-current, over-voltage, Over-temperature, shutdown, short-circuit, reverse polarity protections |
Waterproof | Yes |
Basic parameter | |
Dimension(LxWxH) | 55x35x15mm, etc |
Weight | 30g |
Case | Plastic ABS |
Cooler | Natural cooling |
Rated temperature | 40°c |
Operating temperature | -25°c~85°c |
Warranty | 1 year |
Item | Type | Voltage convert | Output current |
1 | DC-DC Converter - step down | 24vdc to 12vdc | 1/2/3A |
2 | DC-DC Converter - step down | 12vdc/24vdc to 5vdc | 1/2/3A |
3 | DC-DC Converter-Boost | 5vdc to 12vdc | 1/2/3A |
4 | DC-DC Converter-Boost | 12vdc to 36vdc | 1/2A |
5 | DC-DC Converter-Boost | 12vdc to 48vdc | 1/2A |
6 | DC-DC Converter - step down | 36vdc/48vdc to 12vdc | 1/2/3A |
7 | DC-DC Converter-Boost | 12vdc to 24vdc | 1/2/3A |
8 | DC-DC Converter - step down | 60vdc to 12vdc | 10/12/15A |
9 | DC-DC Converter - step down | 60vdc to 24vdc | 10/12/15A |
10 | DC-DC Converter - step down | 60vdc to 36vdc | 5/8A |
11 | DC-DC Converter - step down | 12vdc to 5vdc | 1/2/3A |
12 | DC-DC Converter - step down | 36vdc/48vdc to 24vdc | 10/12A |
13 | DC-DC Converter - step down | 48vdc to 36vdc | 5/8A |
14 | DC-DC Converter---Automatic Step down and Boost | 12vdc-12vdc | 1/2/3A |
15 | DC-DC Converter---Automatic Step down and Boost |
|
|
