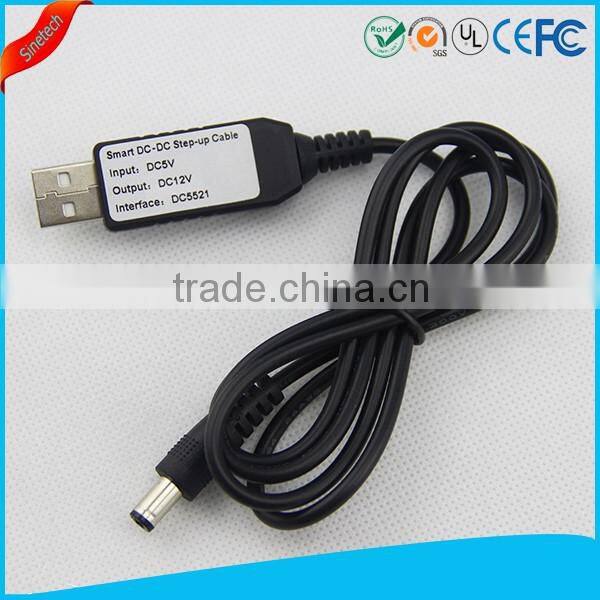

Power Supply Step up dc to dc Converter 5V to 12V

FOB Price

US$ 1 - 3 / Piece

500 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Power supply step up dc to dc converter:

Specifications:

Model	Converter-D015
Output power(W)	10W
Input voltage(V)	5VDC
Output voltage(V)	12VDC
Conversion efficiency	96%
Isolation/Non-isolated	Non-isolated
Output type	Singal
Output current (Amp)	1000mA(Max.)
Input/output interface	Wiring, customization available
Load regulation rate	<1%
Voltage regulation rate	<2%
Ripple	<50mV
Protection	Over-current, over-voltage, Over-temperature, shutdown, short-circuit, reverse polarity protections
Waterproof	Yes
Basic parameter
Dimension(LxWxH)	40x16x10mm, etc
Weight	30g
Case	Plastic ABS
Cooler	Natural cooling
Rated temperature	40°c
Operating temperature	-40°c~85°c
Warranty	1 year

Comparison Test Sample Reference:

  Input 3V output 12V 0.4A 4.8W

  Input 5V Output 12V 0.8A 9.6W

  Input 7.4V Output 12V 1.5A 18W

  Input 12V output 15V 2A 30W

  Input 12V output 16V 2A 32W

  Input 12V output 18V 1.6A 28.8W

  Input 12V output 19V 1.5A 28.5W

  Input 12V output 24V 1 A 24W

Vin * Iin * efficiency = Vout * Iout

Vin: input voltage

Iin: input current

Vout: output voltage

Iout: output current

Drawing:

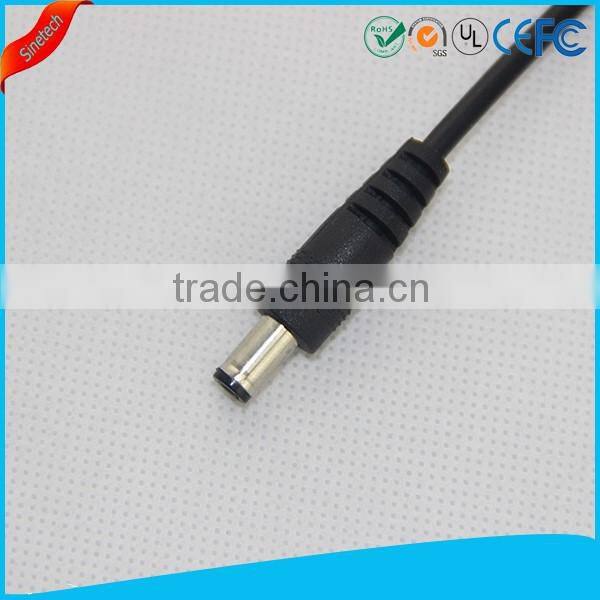

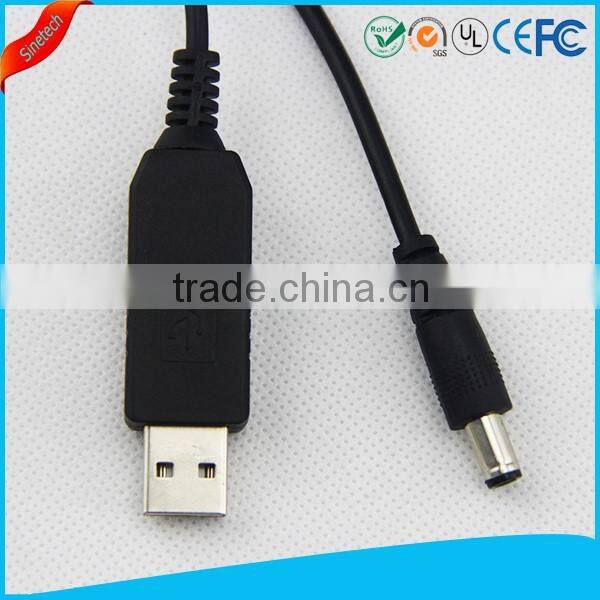

Product details:

Certification:
