Home > Products > Z series - Shaft Collar > Z6 Steel Standard Keyless Locking Devices,hub Lock Nut,set Screw With Nut Lock

Z6 Steel Standard Keyless Locking Devices,hub Lock Nut,set Screw With Nut Lock

FOB Price

US$ 2 - 100 / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	Weilian
Model Number	Z6

Product Description

Z Series-Keyless Locking device Z6:

1.Shaft collar selection method

Choose shaft collar according to load

1.select the shaft collar should meet:

a. transmitted torque Mt ≥ M

b. axial force:Ft ≥ Fx

c. transfer force:Ft ≥ F2X+(M X10-3)2

d. radial force Pt ≥ Fr/d.1 X103

2,the rated load of a connection which to use numerous shaft sleeve.

When Rated load of a shaft sleeve is less than required transfer load, then can set more than two shaft sleeves in series, the total rated load:

Mtn=m.Mt

Type in: Mtn - n shaft sleeve’s rated load:M - load coefficient (m value shown in chart A)

Num. Of shaft collar N	m
Num. Of shaft collar N	Z1shaft collar	Z2, Z3,Z4,Z5shaft collar	Z12, Z15,Z17,Z18 shaft collar
1	1.00	1.0	1.0
2	1.56	1.8	1.8
3	1.86	2.7	-
4	2.03	-	-

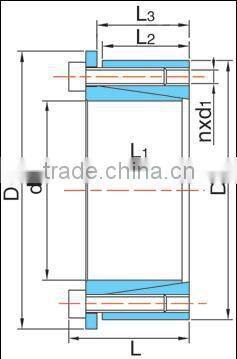

2.picture show

Mark example:

Inner diameter=20mm, outer diameter=55mm Z6sahft collar; shaft collar Z6-20 x55

GB/T7934-1999

Z6 type shaft collar basic size and parameter

basic size							nominal load		oket head cap screw			Press between sleeve and shaft Pf	Press between sleeve and Oldham Coupling Hub Pf	Mass Kg
															d	D	I	L	L1	d1	L		Mt kN·m	d1	n	MA
Ft
							kN	N·M
14	55	17	30	22	62	38	18	127	M8	3	25				208	52.5	0.48
16	55	17	30	22	62	38	18	142	M8	3	25	181	52.5	0.47
18	55	17	30	22	62	38	18	157	M8	3	25	161	52.5	0.46
19	55	17	30	22	62	38	18	165	M8	3	25	152	52.5	0.46
20	55	17	30	22	62	38	18	172	M8	3	25	145	52.5	0.45
22	55	17	30	22	62	38	25.5	285	M8	3	35	186	75	0.44
24	55	17	30	22	62	38	25.5	307	M8	3	35	170	75	0.42
25	55	17	30	22	62	38	25.5	315	M8	3	35	163	75	0.41
28	55	17	30	22	62	38	31.5	435	M8	3	41	175	89	0.39
30	55	17	30	22	62	38	31.5	472	M8	3	41	163	89	0.37
															24	65	17	30	22	72	38	37.4	440	M8	5	30	244	90	0.62
25	65	17	30	22	72	38	37.4	460	M8	5	30	234	90	0.61
															28	65	17	30	22	72	38	43.6	600	M8	5	35	243	105	0.58
30	65	17	30	22	72	38	43.6	640	M8	5	35	227	105	0.56
															32	65	17	30	22	72	38	43.6	690	M8	5	35	213	105	0.55
35	65	17	30	22	72	38	52.5	910	M8	5	41	234	126	0.51
															38	65	17	30	22	72	38	52.5	990	M8	5	41	216	126	0.48
40	65	17	30	22	72	38	52.5	1050	M8	5	41	205	126	0.46
															30	80	20	33	25	87	41	52.4	780	M8	7	30	232	87	1.01
32	80	20	33	25	87	41	52.4	830	M8	7	30	217.5	87	0.99
															35	80	20	33	25	87	41	61	1060	M8	7	35	232	102	0.96
38	80	20	33	25	87	41	61	1150	M8	7	35	214	102	0.92
															40	80	20	33	25	87	41	61	1220	M8	7	35	203	102	0.89
42	80	20	33	25	87	41	73.5	1540	M8	7	41	233	122	0.86
45	80	20	33	25	87	41	73.5	1650	M8	7	41	217	122	0.82
															48	80	20	33	25	87	41	73.5	1760	M8	7	41	203	122	0.76
50	80	20	33	25	87	41	73.5	1830	M8	7	41	195	122	0.73

3.packaging

Aluminum Standard Keyless Locking Devices
