Home > Products > 95 alumina ceramic > ISO Certificate Insulator 95% Alumina Ceramic Insulator Heater Core and Leister Heating Element of Hot Air Gun
ISO Certificate Insulator 95% Alumina Ceramic Insulator Heater Core and Leister Heating Element of Hot Air Gun
- Shanghai
- Money Gram Credit Card
You May Like
-
Insulating High Purty Porous 99.5% Alumina Ceramic Plates Chip Discceramic Shim and Thermal Ceramic Valve Block With 3 Holes
-
High Purty Porous Alumina Ceramic Tube /ceramic Rod
-
E14 E27 Ceramic Porcelain Lamp Holder
-
High Quality Insulator Electric Mosquito Repellent Ceramic Heater Ceramic Heating Resistor
-
High Quality Insulator Electric Mosquito Repellent Ceramic Plate Heater
-
Industrial Insulator 95% Alumina Ceramic Heat Sink for Thermoelectric Cooling System Quality Choice
Product Details
| Place of Origin | Jiangsu, China | Type | Ceramic Plates | |
| Application | Industrial Ceramic | Material | Alumina Ceramic | |
| Model Number | According to your drawing or samples | Brand Name | SLMK |
Product Description

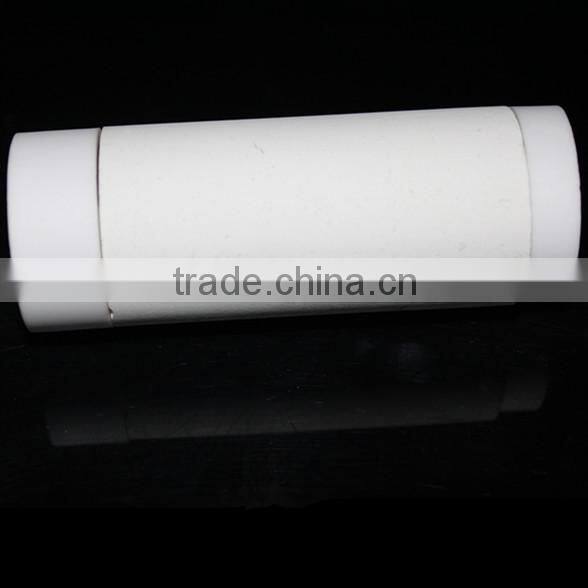

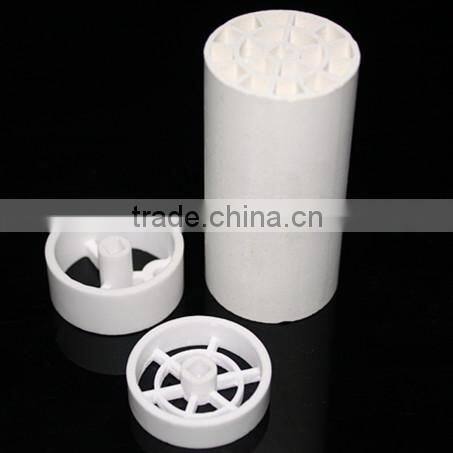

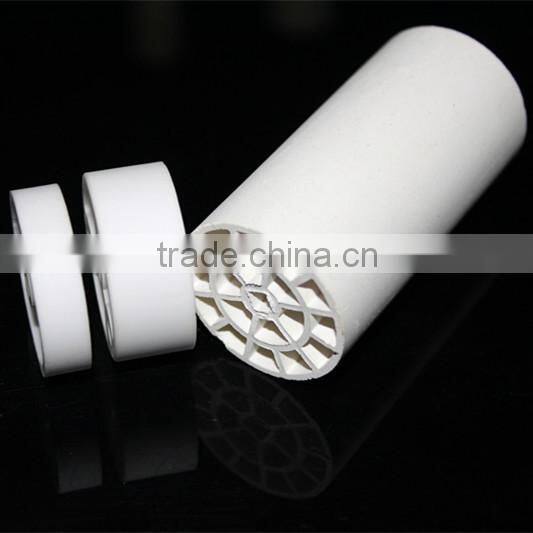

ISO certificate insulator 95% Alumina Ceramic Insulator Heater Core and Leister heating element of Hot Air Gun
1. Raw material: 95% alumina ceramic
| Performance | |||||
| Item | Index | Unit | Steatite ceramic | 95 Al2O3 | 96 Al2O3 |
| Physical Characteristics | Bulk density | g/cm3 | 2.7 | 3.6 | 3.6 |
| Water absorption | % | 0 | 0 | 0 | |
Mechanical Characteristics | Flexural strength | Mpa | 145 | 320 | 340 |
| Hardness Vickers | Gpa | 5.7 | 12.2 | 13.5 | |
| Elastic modulus | Gpa | 120 | 280 | 320 | |
| Poisson’s ratio | - | 0.21 | 0.22 | 0.23 | |
| Thermal Characteristics | Linear expansion coefficient | 20-5000C 10-6/0C | 7.9 | 7.1 | 7.2 |
| Thermal conductivity | w/(m.k) | 2.5 | 16 | 24 | |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | |
| Electrical Characteristics | Dielectric constant(1MHZ) | - | 6.2 | 9 | 9.4 |
| Dielectric loss angle | *10-4 | 18 | 15 | 5 | |
| Dielectric strength | *106V/m | 18 | 12 | 15 | |
2. Advantages:
1). Excellent insulation, security, long working life.
2). Excellent high temperature resistance
3). Low thermal expansion coefficient
We are specialized at producing electric mosquito repellent heater ceramic part , electric mosquito liquid heater ceramic part, electric mosquito solid heater ceramic part, Welcome you contact me for more information.
3. Application:
1). Electric appliance industry
2). Incense device
3).Automotive industry
4. About us:
Jiangsu Sailamike Precision Ceramic is a worldwide leader in the development and production of advanced insulating ceramics. We provide a wide selection of advanced ceramics including Alumina ceramic, Zirconia ceramic, cordierite, steatite ceramic and mullite, which improves and extends the performance of your product, process, or system. Whether you need high temperature stability, high hardness and wear resistance surfaces, improved stiffness to weight radiations, anti-corrosive barriers or low thermal expansion rates - we can deliver. We can offer significant performance and cost advantages to meet your needs.
Welcome you contact us for more information.
