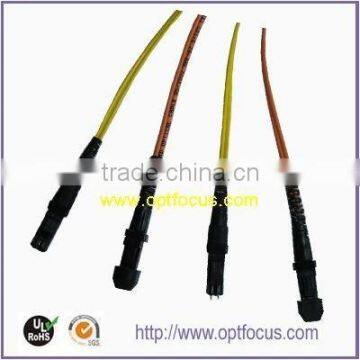

MTRJ Fiber patch cord

Specifications

MTRJ FIBER OPTIC PATCH CORDS

Description

Pacific Interconnections' MTRJ patch cords are designed to meet EIA/TIA 568B.3 and EIA/TIA 604 standards. These products offer excellent performance with high repeatability and low levels of insertion loss. They are fully intermatable with standard MTRJ products and provide long term stability under a wide range of conditions.

MTRJ connectors are low cost and small form factor connectors with RJ-45 latching mechanism making

them ideal for fiber-to the-desk applications. The connectors are made with plastic housings and composite

ferrules meeting demands for cost effectiveness. Their duplex ferrules and push-pull mechanism ensure

easy connectivity.

Other than standard single mode and multimode fibers, OM2, and OM3 fibers are also available upon

request. Flame retardant grade cable sheathing options are offered. Riser rated cable will be provided as

standard. LSZH and Plenum can be provided upon request.

Features

1.RJ-45 form factor

2.Duplex ferrule

3.Increases density by 50%

4.Low cost

5.Materials meet RoHS requirements

6.Riser, Plenum, and LSZH cables  available

Applications

1.Local Area Networks

2.Fast Ethernet

3.Fiber Channel

4.ATM Networks

5.Network cross-connect

6.Fiber-to-the-deskavailable

7.Optical Performance Distribution

Insertion Loss, MM 62.5/125um Insertion Loss, SM 9/125um PC

Specification
