High Molecular Weight Polyethylene HMWPE Cable
- Guangzhou or according to your requirement
- T/T
You May Like
-
HMWPE PVDF cathodic protectiong Cable
-
0.6/1kV cathodic protectiong Cable
-
Copper conductor PVC/XLPE insulation PVC sheathed power cable
-
Copper core (Aluminum core) XLPE insulation and PVC sheath power cable or steel tape armoured power cable
-
Copper-Clad Aluminum Conductor Power Cable
-
Silicone Rubber Insulated Flexible Cable
Product Details
| Place of Origin | Hunan, China | Brand Name | Hengfei | |
| Model Number | HMWPE/KYNAR | Conductor Material | Copper | |
| Insulation Material | Other, Polyvinylidene fluoride(KYNAR) | Jacket | Other, HMWPE, High Molecular Weight Polyethylene(HMWPE) | |
| Number of Conductors | Single core or multi-core | Application | Power plant, power station |
Product Description
Specifications
1.Certificate:CQC,3C2.Strict QC
3.99.95% purity copper conductor
4.Free sample
High Molecular Weight Polyethylene HMWPE Cable
Application
Used for direct earth burial or water submerged cathodic protection installations.
High Molecular Weight Polyethylene HMWPE Cable

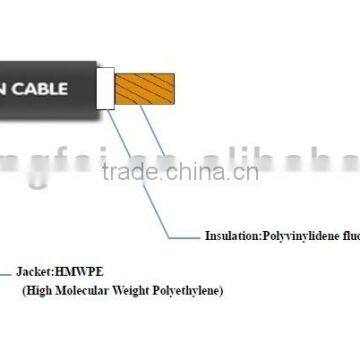

Rated Voltage:0.6/1kV and below
Type:HMWPE/KYNAR
Conducor Standard:Use annealed copper wire (IEC60228-2004)
Insulation: Polyvinylidene fluoride(KYNAR)
Used polyvinylidene fluoride(KYNAR)insulation material imported from US and its thickness should no less than stated nominal value.
Its minimum value should no less than 90% of the normal requirement. Insulation should pass 6kv power frequency sparking test by 100%.
Jacket:High Molecular Weight Polyethylene
Use black high molecular weight polyethylene sheath material and its thickness should no less than stated nominal value,
sheath thickness control according to nominal value,sheath thickness kindly see the following list.
Lettering Requirements: Can be customized to meet customer requirements.
Applications:
Used for direct earth burial or water submerged cathodic protection installations.
Specification & Structure dimension | ||||||||
Description | Conductor | Insulation | Jacket | Outer Diameter±1mm | Reference Weight | |||
Sectional Area | Conductor Structure No. | Conductor Diameter | Standard Thickness (kynar)±0.5mm | Standard Thickness(HMWPE)±0.5mm | ||||
mm2 | mm | mm | mm | mm | mm | Kg/Km | ||
HMWPE/KYNAR | 1*6 | 7/1.03 | 3 | 0.6 | 1.4 | 7.0 | 88.6 | |
1*10 | 7/1.37 | 4.1 | 0.6 | 1.4 | 8.1 | 137.0 | ||
1*16 | 7/1.70 | 5 | 0.7 | 1.6 | 9.6 | 197.8 | ||
