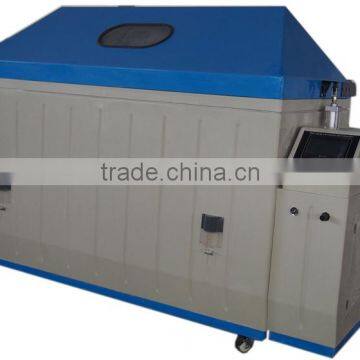

3 Years Free Maintenance Chamber Salt Spray Cabinet With Best Price

Model

S-150

S-250

S-750

S-010

S-016

S-020

Internal dimensions  (mm)

450*600*400

600*900*500

750*1100*500

850*1300*600

850*1600*600

900*2000*600

Overall

dimensions   (mm)

800*1080*1080

870*1400*1150

1150*1750*1400

1250*2000*1550

1250*2300*1550

1300*2700*1550

Technical structure

Temperature range

Ambient ~60℃

Humidity range

95% ~ 98% RH

Temperature fluctuations

+/- 0.5 ℃

Temperature deviation:

+/- 2.0 ℃

Test time

1~999 hours, settable

Spray deposition

1~2ml / 80cm2 · h

Spray type

Continuous / Periodic

Temperature Controller

LED display, P.I.D+S.S.R. microcomputer integrated controller

5.7" programmable color display touch screen controller   (option)

Temperature sensor

Platinum resistance. PT100ohm / MV A-class

Salt fog collected

With standard funnel and metering cylinder

salt water filtration

Salt water preheating

The temperature for salt water should be equal with workroom temperature

Spraying system

Tower spray and nozzle without crystallization(Fog is more fine and uniform distribution)

Interior /Exterior material

Glass fiber reinforced plastics; (corrosion resistance, Anti-aging, high strength)

Standard configuration

round bar / 1 piece; sample holder / 1 piece; spray nozzle / 2 pieces; Fog collectors / 2 pieces;

metering cylinder / 2 pieces

safety device

Humidifier dry-combustion protection, independent over-temperature protection, water shortage protection, over-current protection, refrigerant high-pressure protection switch, over-current circuit breaker, earth leakage protection and so on.

Sealing

Hydrostatic hood seal

Standard

ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227

Nominal Power

2500W

3500W

4500W

6500W

8500W

11000W

Power Supply

AC220V 50HZ

AC220V 50HZ

AC220V 50HZ

AC380V 50HZ

AC380V 50HZ

AC380V 50HZ

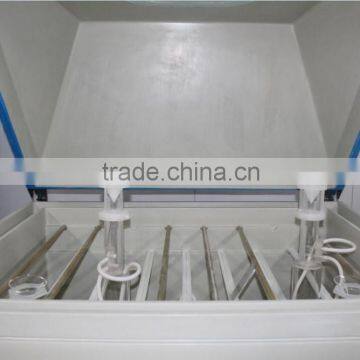

Fog Chamber

Fog chamber is made from Glass fiber reinforced plastics,

Material is corrosion resistance, Anti-aging, high strength.

Hydrostatic seal Cover

Test specimen bracket / holder

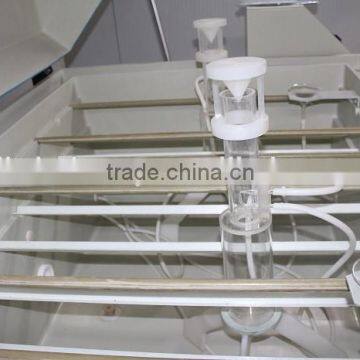

Atomizer Tower and Spray Nozzle

Corrosion resistance atomizer tower.

Quartz spray nozzles

No crystallization of atomizer tower spray and nozzle.

Spraying

Spray deposition: 1~2ml / 80cm2 · h

Spray type: Continuous / Periodic

Fog is more fine and uniform distribution

Perform a variety of salt corrosion test

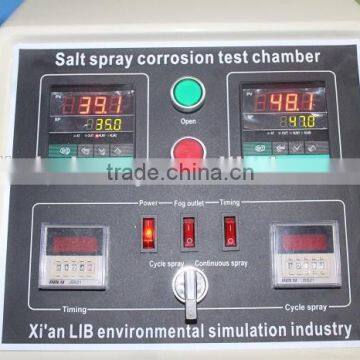

Control Panel

LED display, P.I.D+S.S.R. microcomputer integrated controller

Control workroom temperature and saturation temperature.

Programmable color touch display controller (option)

Safety Protection

Independent over-temperature protection,

Water shortage protection

Over-current protection

Earth leakage protection and so on

Power Supply and Wiring

380V+/- 10%, 50 Hz

Three-phase-five-wire system

Pre-Sales Service:

* Inquiry and consulting support.

* Offering quotation and specifications.

* Provide test solutions.

* Visiting our factory.

After-Sales Service:

* 3 Years Warranty, Lifelong Follow-up Services.

* Training how to install and operate the machine.

* Training how to maintain the machine.

* Response within 24 hours once got questions from customers.

* Send spare parts within 2 days after got notice.

* Engineers available to service machinery overseas to install and commissioning.
