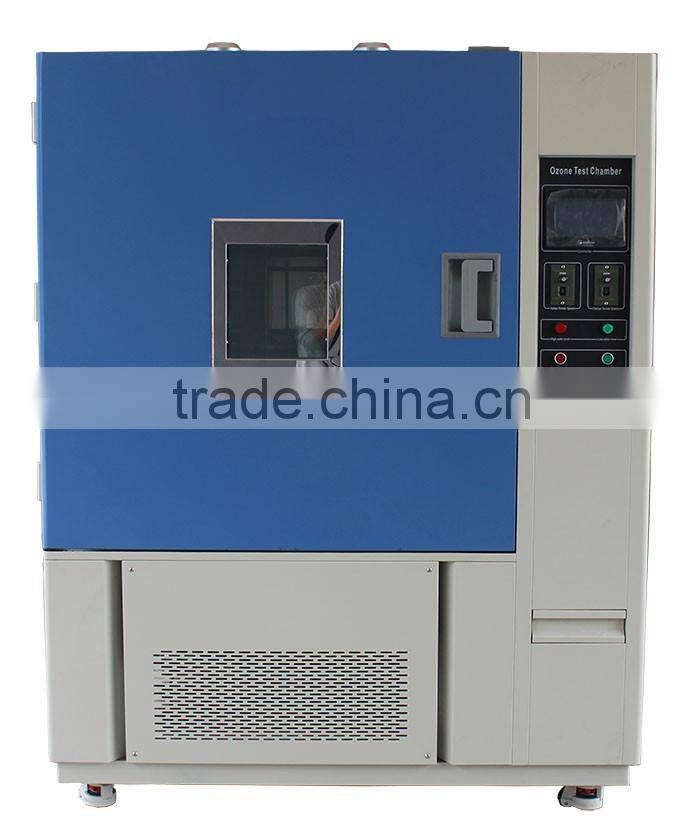

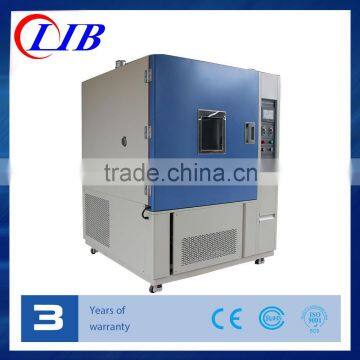

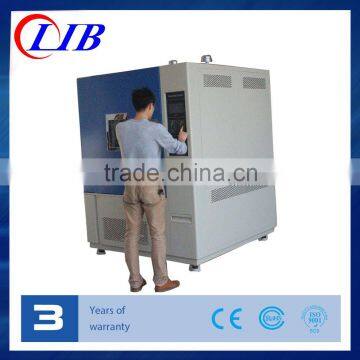

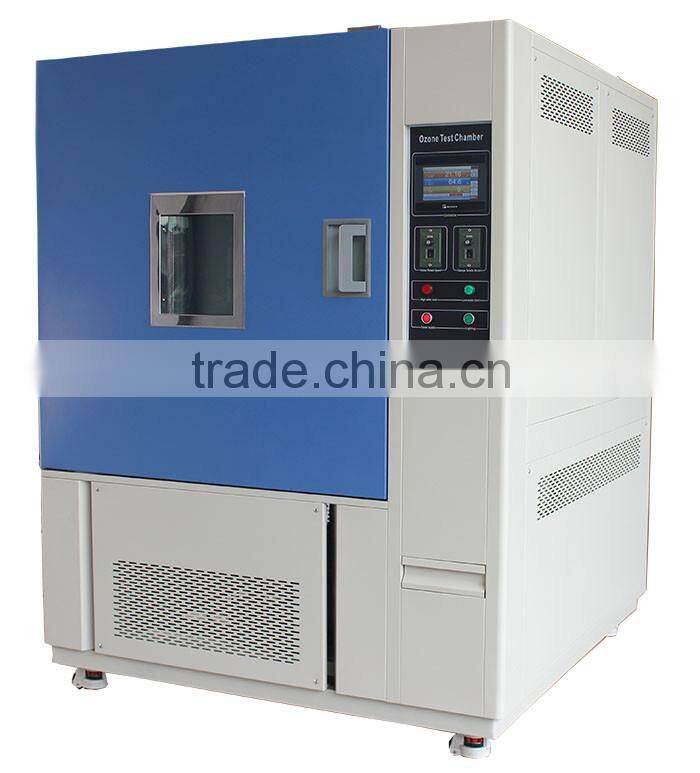

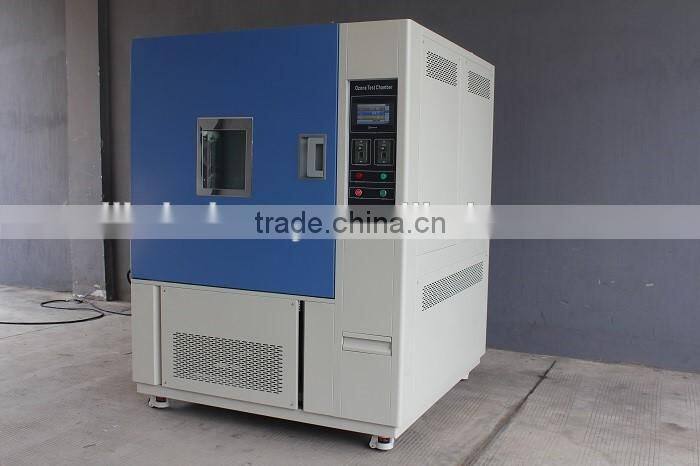

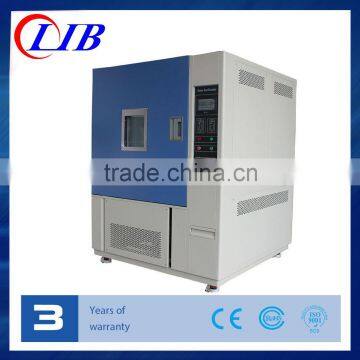

Dynamic Test Rig Ozone Resistance Test Chamber

Model

OC-100

OC-250

OC-500

OC-800

OC-010

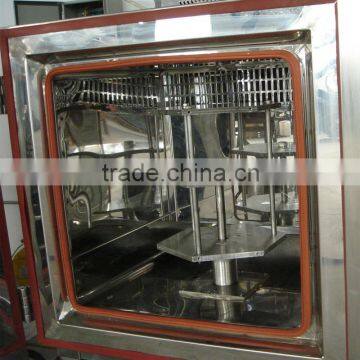

Internal dimensions (mm)

400*500*500

600*600*700

700*800*900

800*1000*1000

1000*1000*1000

Overall dimensions (mm)

860*1050*1620

960*1150*1860

1180*1350*2010

1280*1550*2110

1500*1550*2110

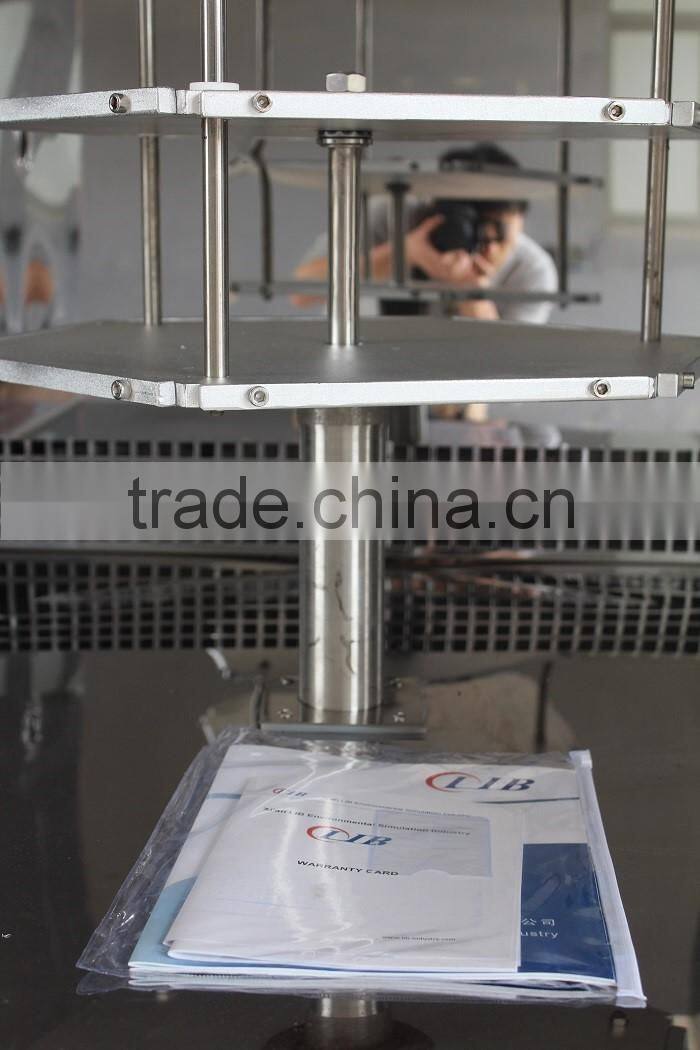

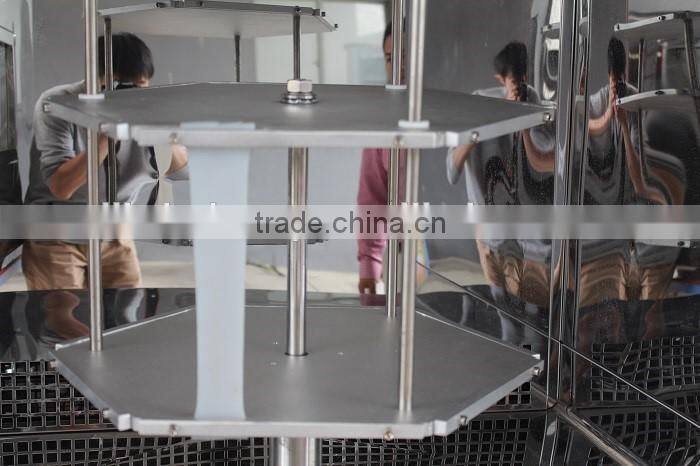

Diameter of holder (mm)

350

400

600

700

900

Length of each side (mm)

150

180

220

350

460

Temperature range

0℃~100℃

Humidity range

30% - 98%R.H

Temperature fluctuation

±0.5℃

Speed rate for cooling:

Environmental conditional ~ 0℃ within 20 min.

Timing range:

0~999 hours

Ozone concentration:

1~1000PPHM   (Adjusted)

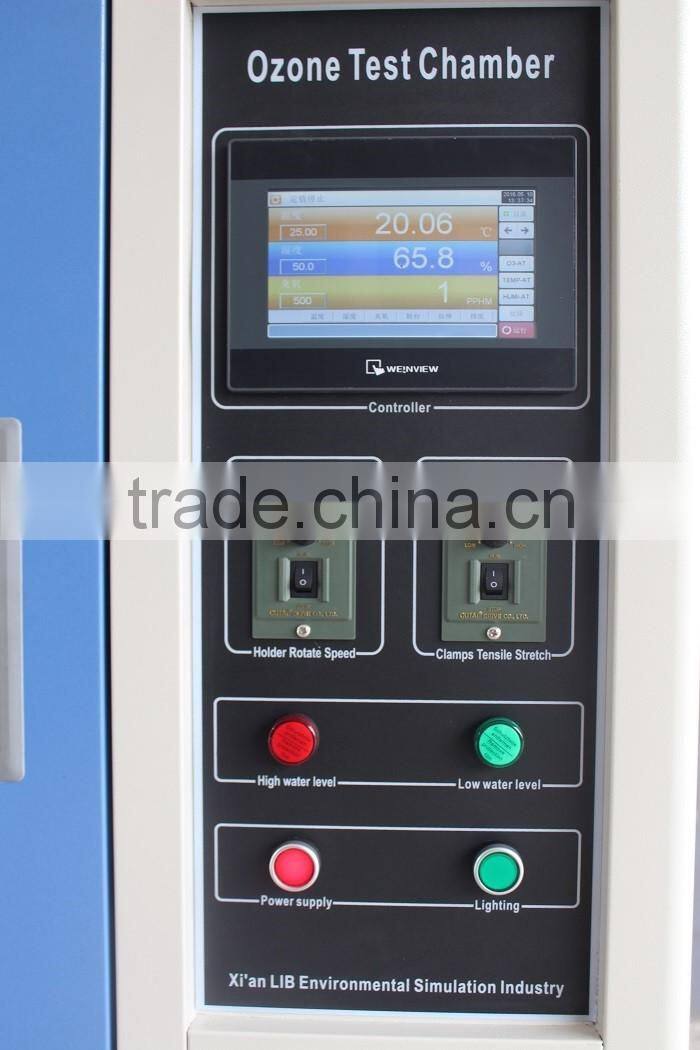

Sample holder rotate speed:

0~10 r/min (adjustable)

Clamps tensile stretch :

5%~35%

Max. ozone concentration:

120gO3/m³

Ozone output:

3.5gO3/h ((oxygen input, flow rate 100L/h)

Standard

ASTM D 1149; IEC60811-403

Nominal power

5500W

6000W

7500W

9000

11000W

Power & voltage:

AC380V 50HZ

AC380V 50HZ

AC380V 50HZ

AC380V 50HZ

AC380V 50HZ

Warranty & service
Warranty period: 3 years

Service:
Our company will repair the product, if the product, the material of the parts, the design and manufacturing of the products made by our company arise hardware problems caused by product itself rather than human error within three years warranty period since the date of delivery.

The Company repairs the products, but will charge the cost of the spare parts after the warranty period.
