Conveyor Trough Roller

FOB Price

US$ 7.86 - 26.59 / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	Goldensun
Model Number	TDIIA

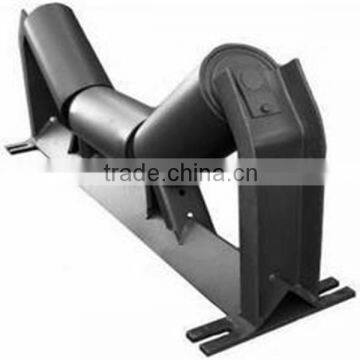

conveyor trough roller
1.Material:Welded steel S235
2.Dia:60-219mm
3.Length:150-3500mm
4.Coal mining industry

conveyor trough roller

Brand	Goldensun
Material	Steel
Finish	Painting/Rubber /steel screw/galvanized/
Certificate	Product Mark of Safety Certification
Management system	ISO 9001:2000;CE
Dimension	Diameter(mm):63.5/76/89/108/133/159/194/219 Pipe thickness(mm):4—10mm
standard	Td75, DTII, DTIIA, DJI, DJII, DX, CEMA,Australia,ISO,JIS or according to requirements
Life time	50000H
Service	Design/OEM/Buyer lable
Material Feature	Water, wear, dust and corrosion resistance
Load Capacity	9000ton/hour
Supply capacity	600 pieces/day
Package	Plywood cases

Roller inner structure and material
Tube	Carbon steel
Shaft	bright drawn steel to required bearing tolerance
Shaft end	both ends of the tube are simultaneously machined and chamfered.
Bearing	single and double row deep groove ball bearing 2Z and 2RS with C3 clearance.
Rubber	heat vulcanized rubber. Wear resistant, anti-fire
Seals	multiple labyrinth seal
Welding	mixed gas shielded arc welding end.
We can product any kind of per your drawing! (TD75/DTII/CEMA, and so on).

return idler roller size

Idler Dia mm	50	63.5	76	89	102	108	114	127	133	139.8	152.4	159	165.2	177.8	190.7	194	219
Length	1900mm-3500mm
