CL-12D Wet Stainless Steel Wire Drawbench Machine
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai
You May Like
Product Details
| Condition | New | Inlet Diameter | 1.2mm-1.0mm | |
| Outlet Diameter | 0.35mm-0.55mm | Place of Origin | Jiangsu, China | |
| Brand Name | Xiangle | Model Number | CL-12D | |
| Voltage | 380V | Power(W) | 7.5KW | |
| Dimension(L*W*H) | 1500*1200*1800 | Weight | 1200Kg | |
| Certification | ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Wet Wire Drawing Machine for :1) Stainless Steel Wire
2) Galvanized Wire
3) Alloy Wire
4) Iron Wire
1, Technical Parameter
Inlet: 1.2mm-1.0mm
Outlet:0.35mm-0.55mm
Max Modules: 12
Mechanical Reduction: 15.6%
Drawing Method: Horizontal Two-step Pulleys Type
Max Line Speed: 500m/min
Control System: PLC Dual Frequency Conversion
Drawing Capstan: Mold Steel Vacuum Annealing Treatment
Main Motor's Power:7.5KW
Take-up Machine's Power: 1.5KW
Driving Method: Synchronizing Sheel,Synchronizing Belt, Flat Belt
Drawing Lubrication Method: Modules, Step Pulley By Full Immersion
Braking Method: Electronmagnetic Brake

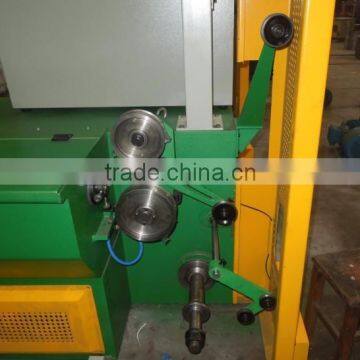

2, Photos Of Machines
3, Photos of Company
4, Photos Of Customers
