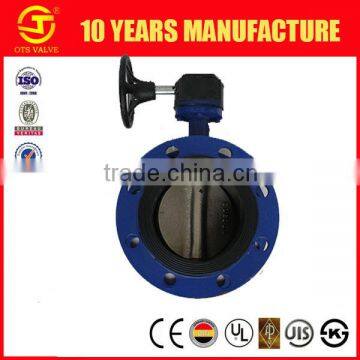

(BV-MZ-003) Concentric Double Flanged Butterfly Valve Price

ABOUT BUTTERFLY VALVE

A butterfly valve is a valve which can be used for isolating or regulating flow. The closing mechanism takes the form of a disk. Operation is similar to that of a ball valve, which allows for quick shut off. Butterfly valves are generally favored because they are lower in cost to other valve designs as well as being lighter in weight, meaning less support is required. The disc is positioned in the center of the pipe, passing through the disc is a rod connected to an actuator on the outside of the valve. Rotating the actuator turns the disc either parallel or perpendicular to the flow. Unlike a ball valve, the disc is always present within the flow, therefore a pressure drop is always induced in the flow, regardless of valve position.

Basic Structure

Technical Data

DN:50-2400

PN:1.0 OR 1.6Mpa

Design Standard:API 609/ AWWA C504   DIN3354   GB/T 12238   EN593   BS5155

Connection Standard: ASME B16 EN12627 DIN3239

Structure Length:BS 5155 EN 558 JIS B2002

Flange Standard:GB/T9113. DB2501  GB13402  JIS B2212 BS4504 BS1560

Testing Standard:GB/T13927  EN12266 DIN 3230 JIS2003 BS5146

Pressure & Temperature:DIN2401 JIS B2073  BS1560

Structure Picture

Connection Dimension & Weight

Products & Packing

Accessories

Exhibition Fair

Mainland

1.The Canton Fair in Guangzhou Each Year.

2.Shanghai Fluid Exhibiton.

Overseas

1. Turkey International Pumps & Valves Exhibition.

2. Singapore International Pumps & Valves Exhibition.

3.Thailand International Pumps $ Valves Exhibition.

Process

ABOUT OTS

• OVER 10 YEAR'S ODM Experience
• ISO 9001:2008 certificate/ Bureau Veritas audited
• Our certification:

 Quality Management System Certification

---CE 0038 Certification

---ISO 9001: 2008 Certification

---Registration Certificate of Consignors and Consignees of Imports and Exports

---Certificate of approval

---PED Certification

---SHA Certification

---60055802 Certification

---KS Certification

---TS Certification

---Business licence

---Organization Code Certificate

Any inquiries or problems about butterfly valves, please contact us freely, and I am very pleased to help you.
