Home > Products > PP/PE Woven Bag Production Line > PP woven bag making machines-Circular loom
PP woven bag making machines-Circular loom
- T/T Credit Card
You May Like
Product Details
| Condition | Used | Year | 2012.05.30 | |
| Power | 6kw | Place of Origin | Zhejiang, China | |
| Brand Name | Tianchen | Model Number | S-YZJ-8/2200 | |
| Driven Type | Other, AC motor | Packaging Material | Plastic | |
| Packaging Type | Other, wooden case | Automatic Grade | Other, auomtaic |
Product Description
Specifications
The circular loom can make woven bag for cement, flour, jumb bag, FIBC woven bagPlastic Circular Loom

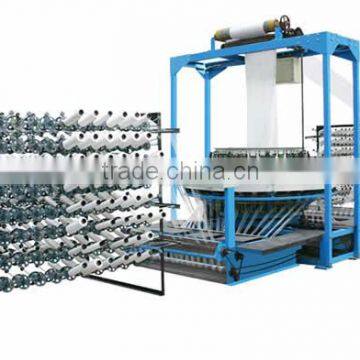

The machine is a kind of equipment to produce circular cylinder woven of PP or PE plastic flat yarn. The 4-shuttle and 6-shuttle circular loom can weave woven bags of all specification
1.The cam driving unit has been optimum designed and created to ensure long time running and less electrical and spare parts consumption.
2.World top advanced weft detecting system is extracted to increase to auto running and effective of the machine and also rejects can be reduced by the same.
3.Advanced weft detecting system is used to reduce the rejects and seconds.
4.Advanced synchronous electrical control system for main motor and hauling off unit is adopted to ensure the fine smooth and flat weaving performance.
Model | S-YZJ-850/6S |
Number of shuttle | 6 pcs |
Speed of main shaft (rpm) | 100-180r/min |
Production Capacity(10x10) | 1.8-2.55m/min |
Working width/double flat(mm) | 350∼850mm |
Number of warp tape | 720 |
Inside diameter and length of core | Φ30∼38×230mm |
Weft bobbin diameter | Max.Φ115mm |
Power of main motor | 3Kw |
Dimensions (L×W×H) | 9000x2410x3100(mm) |
Weight | 2000kg |
Our company, Zhejiang Tianfeng Plastic Machinery Plant can supply plastic six-shuttle Circular loom, plastic four-shuttle circular loom, plastic eight shuttle circular loom, plastic mesh bag circular loom, plastic leno bag circular loom, plastic container bag circular loom, plastic cement bag circular loom, plastic flour bag circular loom, plastic fertilizer bag circular loom, plastic rice bag circular loom.
